This system is designed to fit over 3/4" PVC pipe which has OD of 1.05". It comes with all the essential parts like the clamp collar, tripod, and two cable clips.

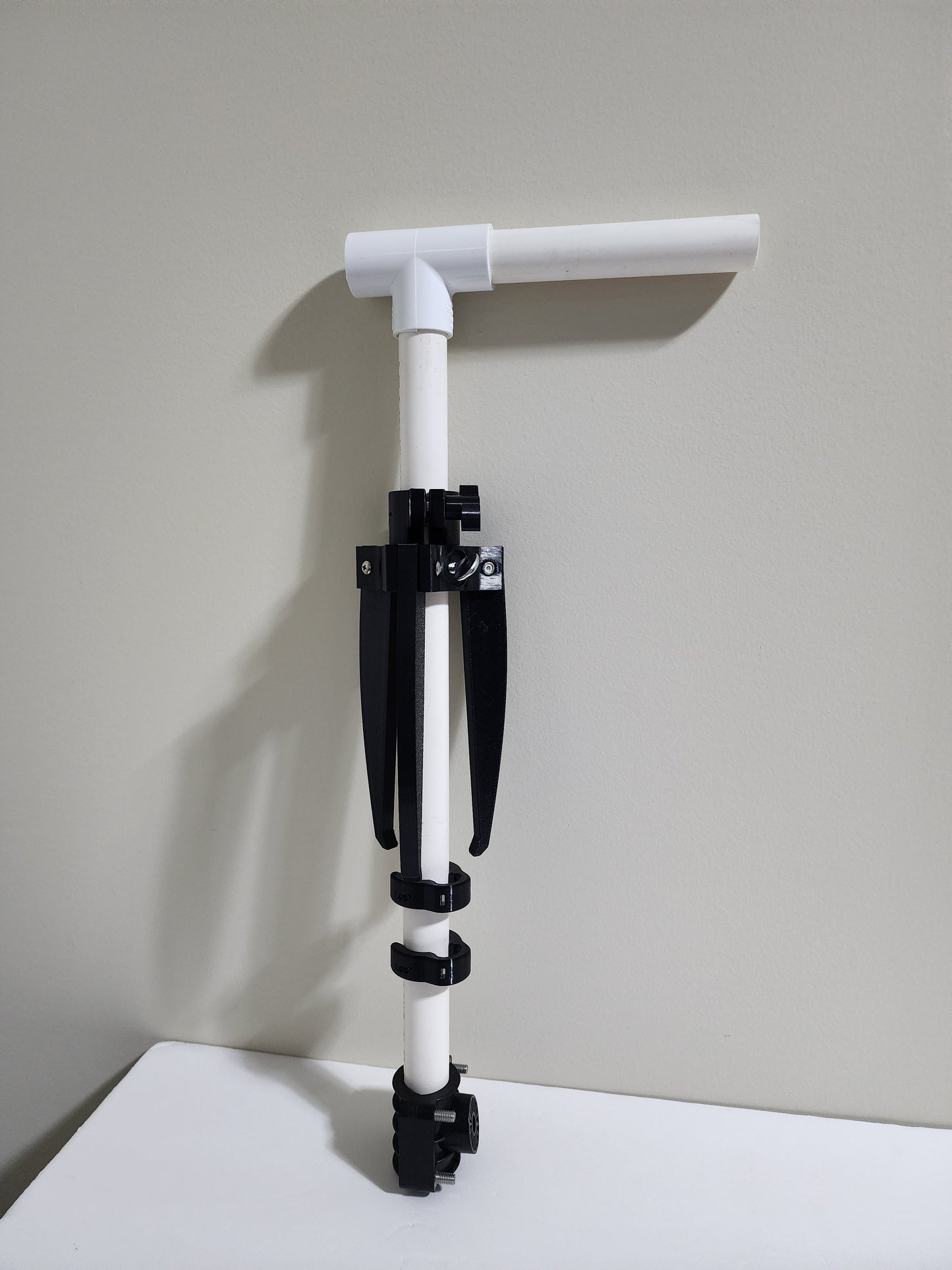

For handle, you can use either a 90 degree elbow, or a T fitting. They are less than a dollar from the local hardware store.
A foldable handle is an option to add to this kit as well.
What's included:

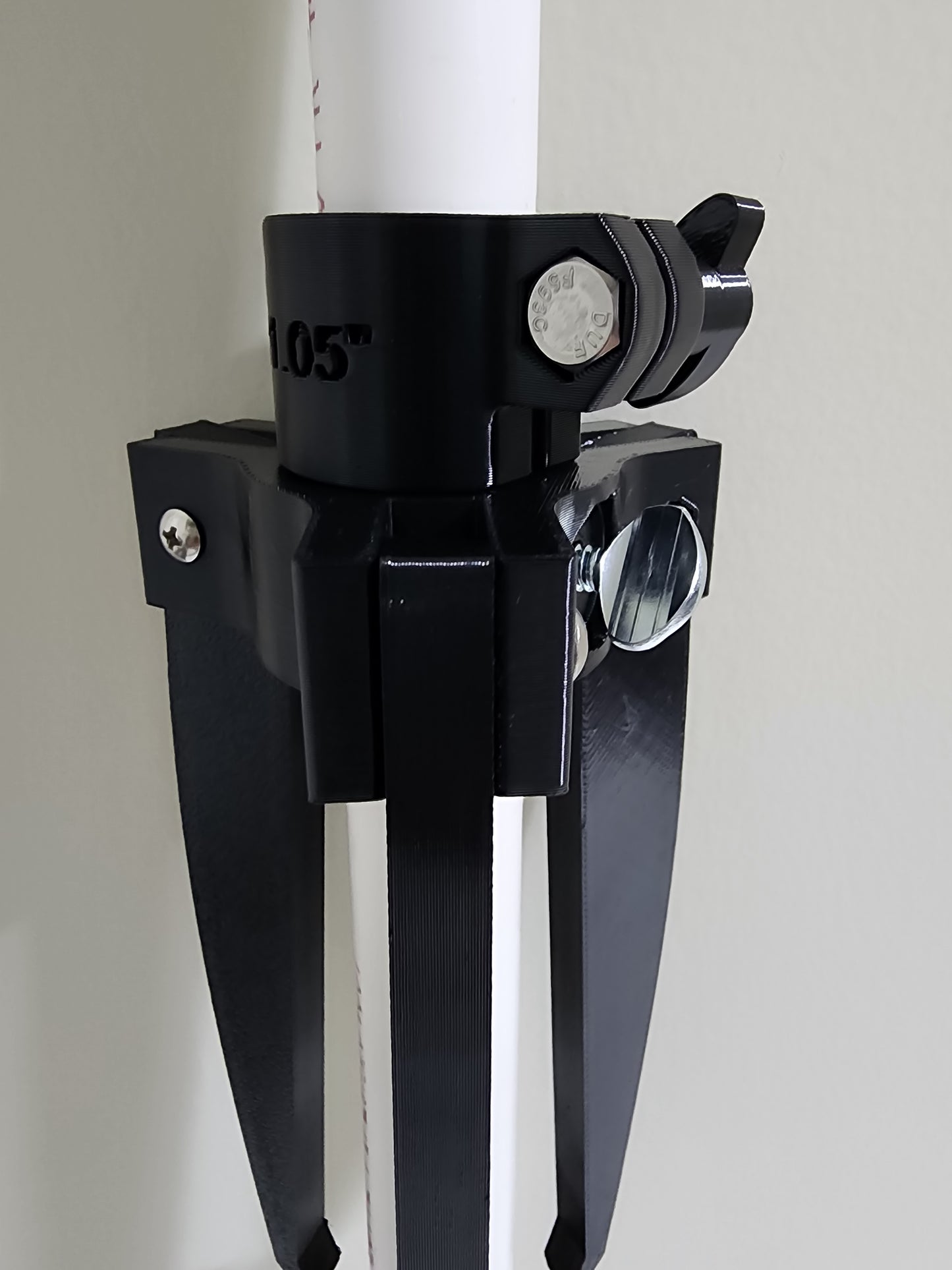

- One heavy duty clamp collar with thumb screw to set height
- One tripod with foldable legs

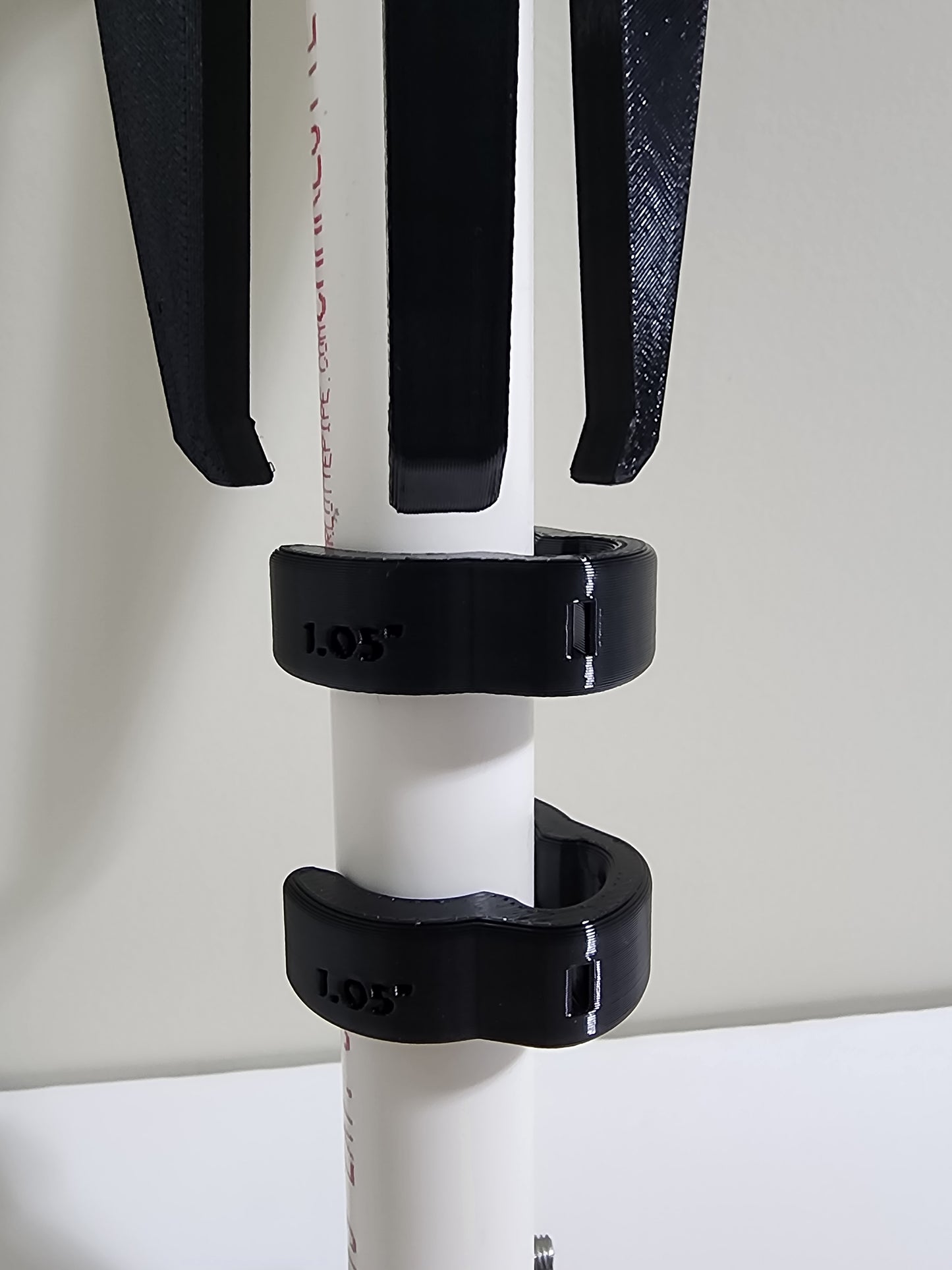

- Two cable clips
Optional:

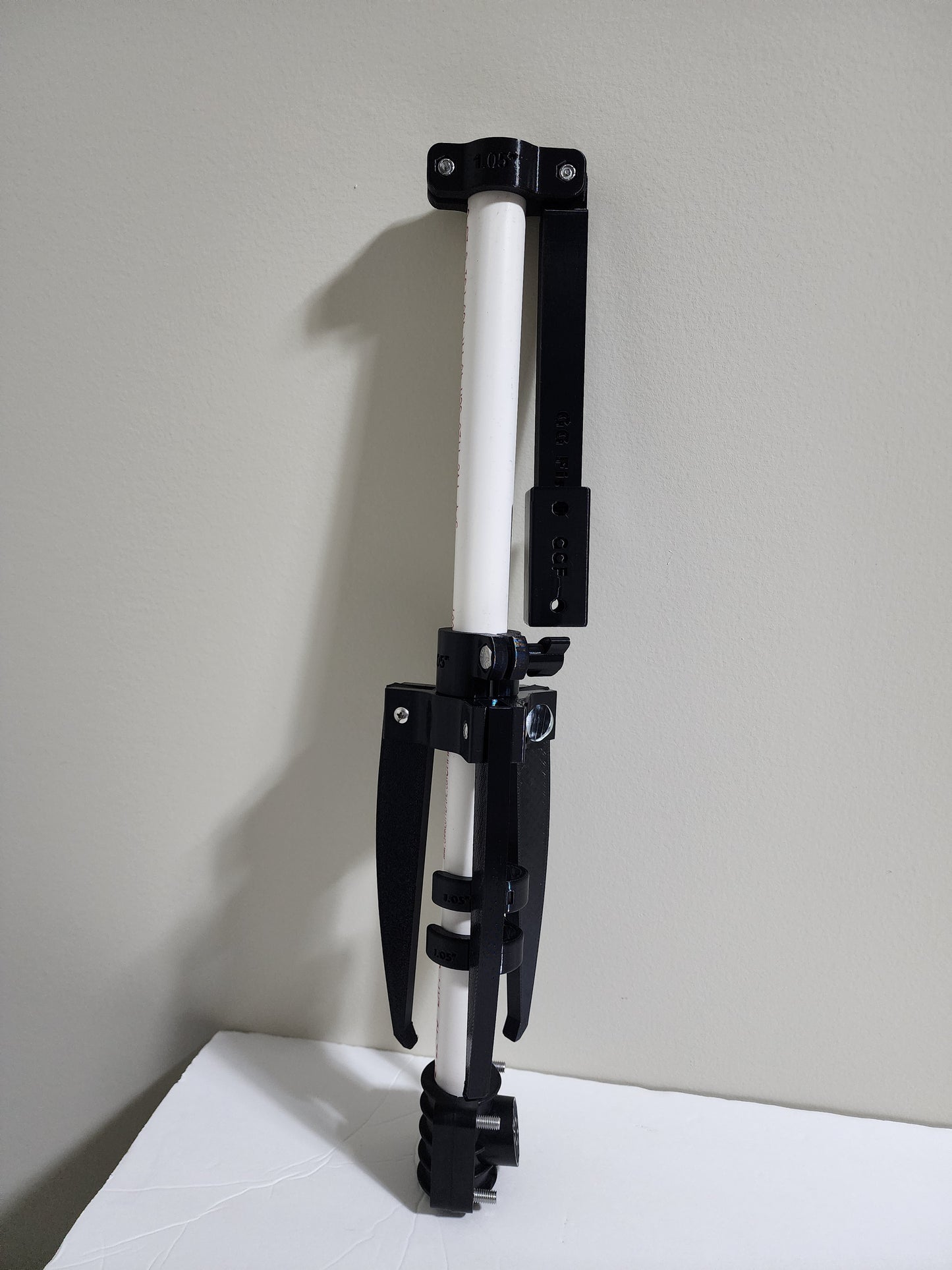

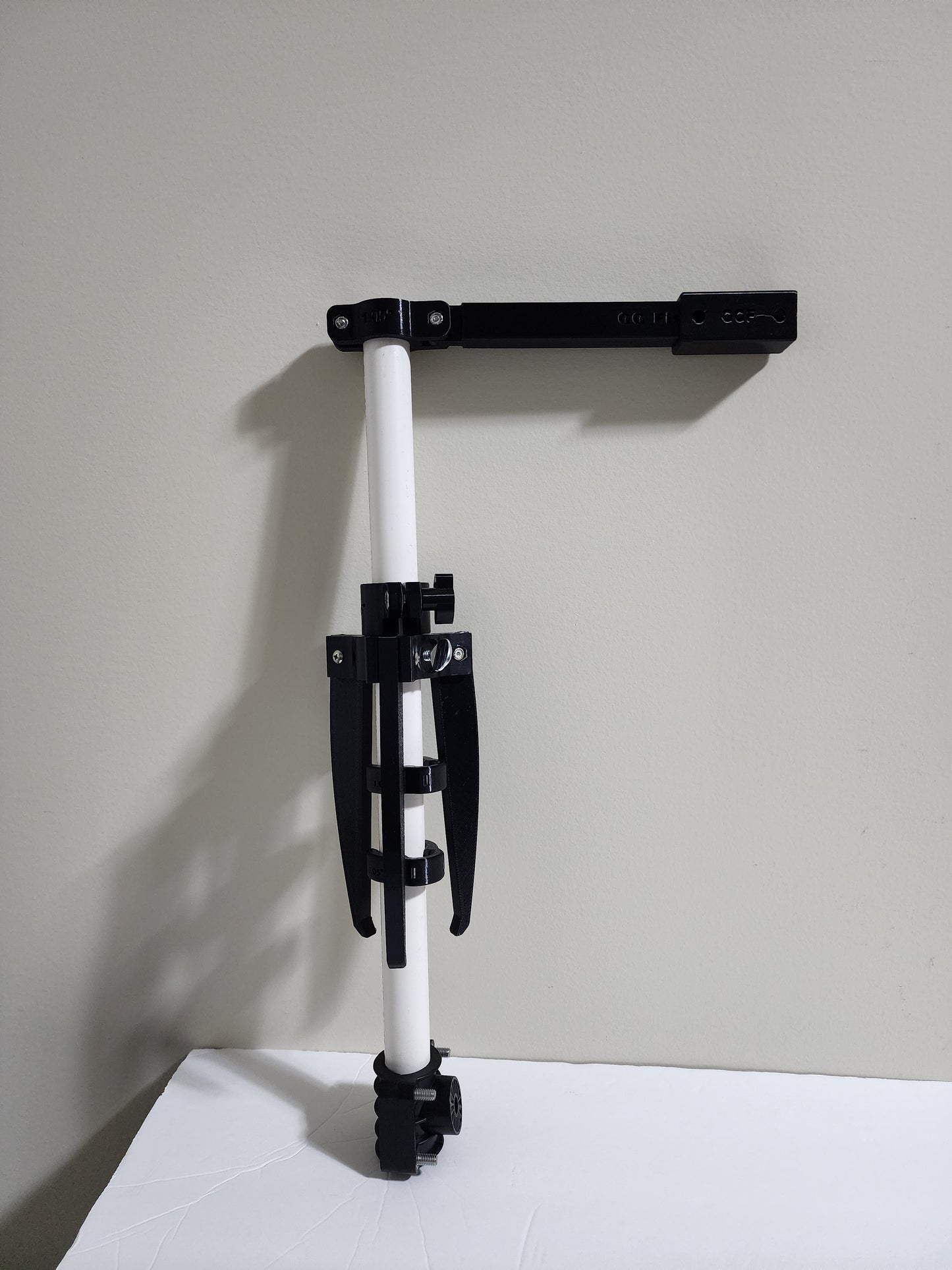

- Foldable handle with handle extender

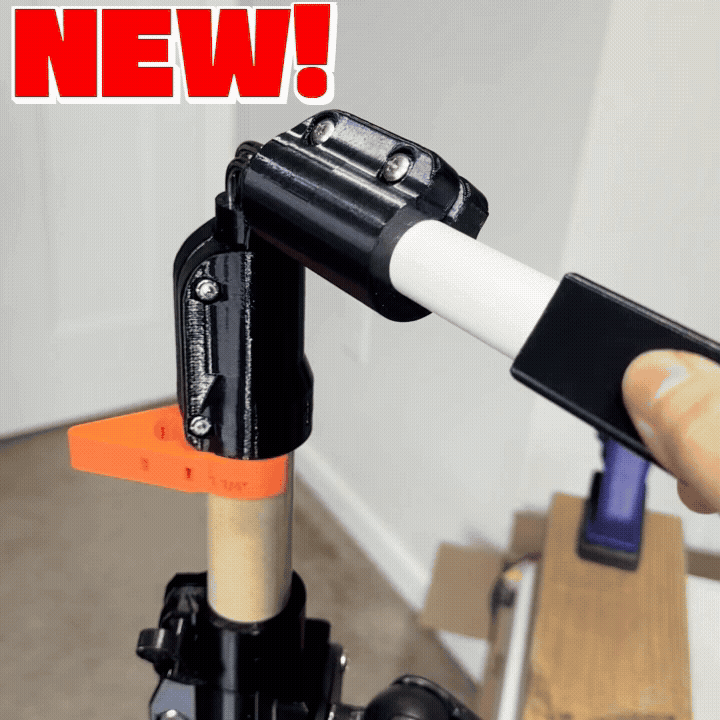

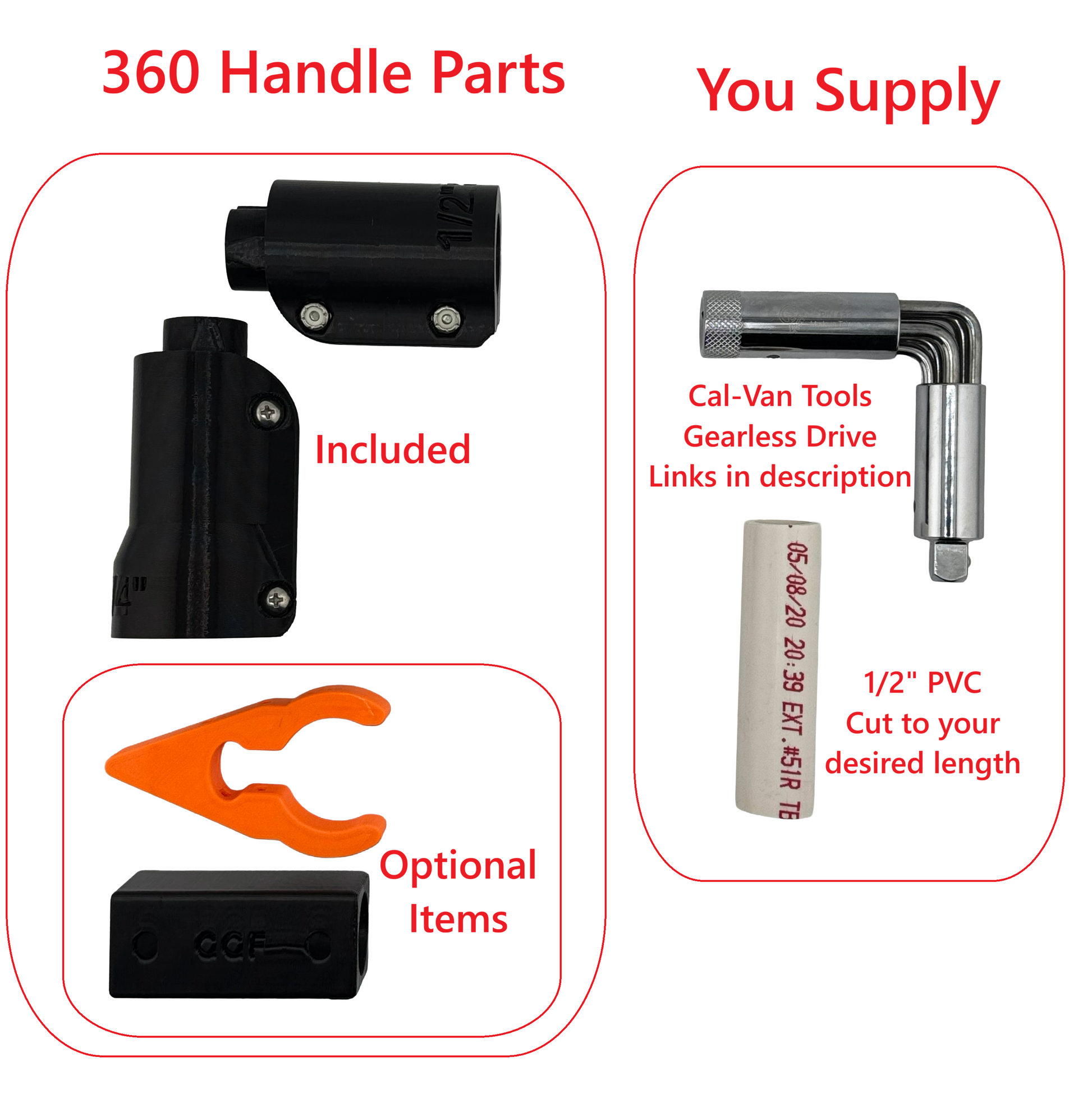

- 360 Easy Turn Handle
You will need the following to complete the setup:
- A piece of 3/4" PVC pipe cut to your desired length based on ice thickness
- One PVC elbow or T fitting to make a handle
- Your transducer shaft mount from the factory. Livescope, Livescope Plus, Active Target 1/2 all include them. For Eagle Eye 9 you will need to purchase a transducer shaft mount separately as Lowrance didn't include a shaft mount in the package.
Below are the models of gearless angle drive I purchased and tested with this product. I can guarantee the fit on these two models. If you already own a different brand or style I can't guarantee the fit as I didn't test them.
The 90 degree 1/4" does NOT have enough clearance to rotate.
