Mount your Eagle Eye 9 transducer on your existing pole. Solid one piece construction!
Please select the option based on the pole you are using. This is very specific to each pole type and the size and shape are different.

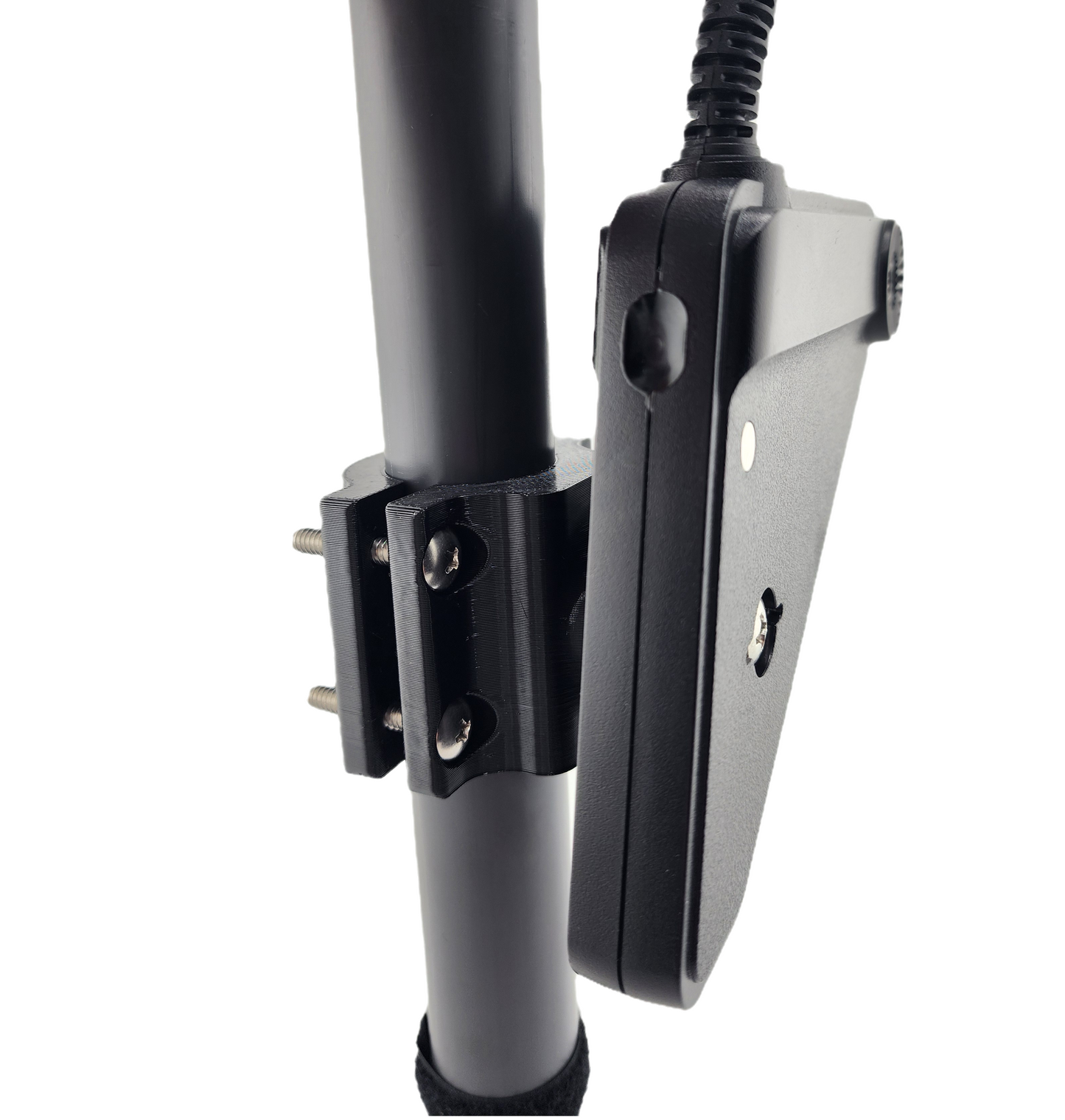

Clamp style fits poles with outside diameter of 1 inch to 1.5 inch. No quick disconnect.
0.85" Option - Fits Summit G2 silver pole, carbon fiber pole, HDI's carbon fiber pole Gen1(lever lock) and Gen2(twist lock),

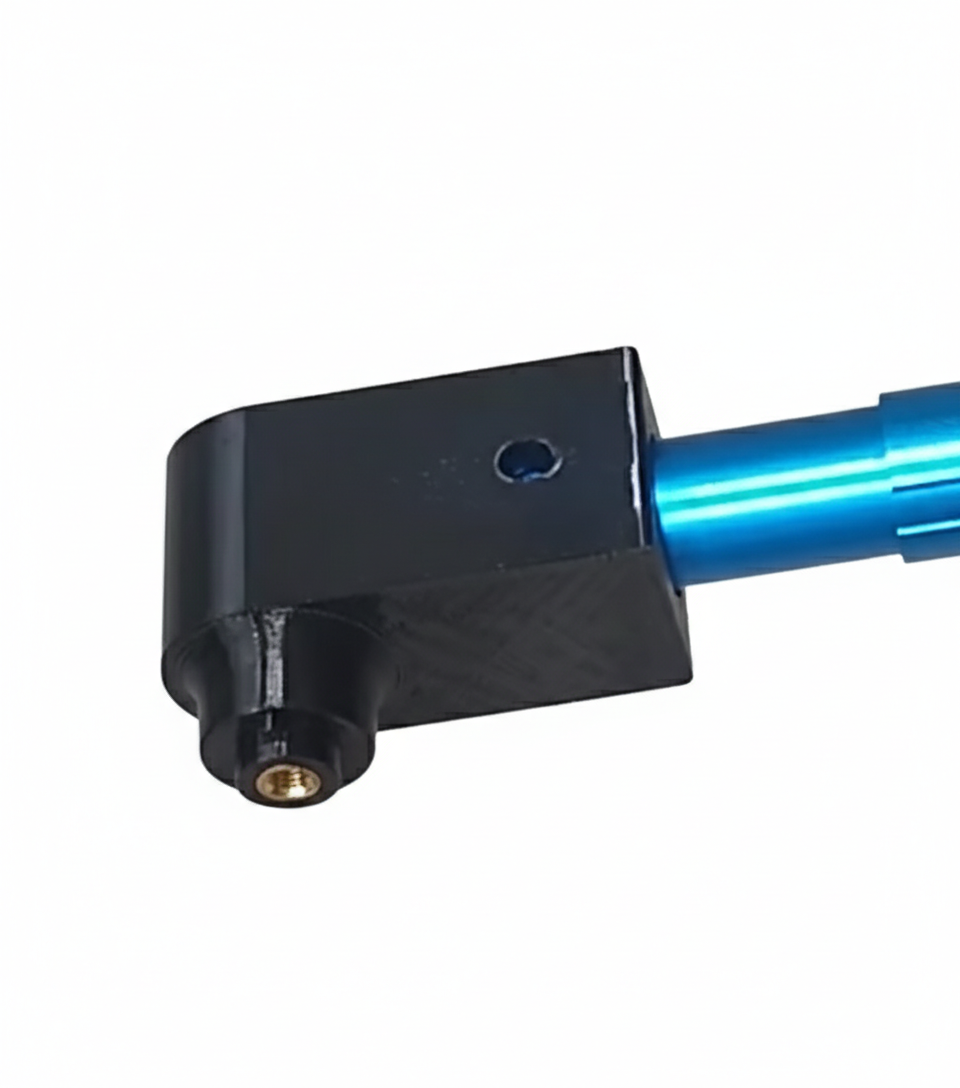

0.875" for Clam's ice pole. Same size for attaching the pole as the HDI pole but the D-ring hole on the Clam pole is in a different location. The pole itself is just about 1mm smaller than HDI pole. You can wrap a couple layers of electrical tape on the pole end for a snug fit.

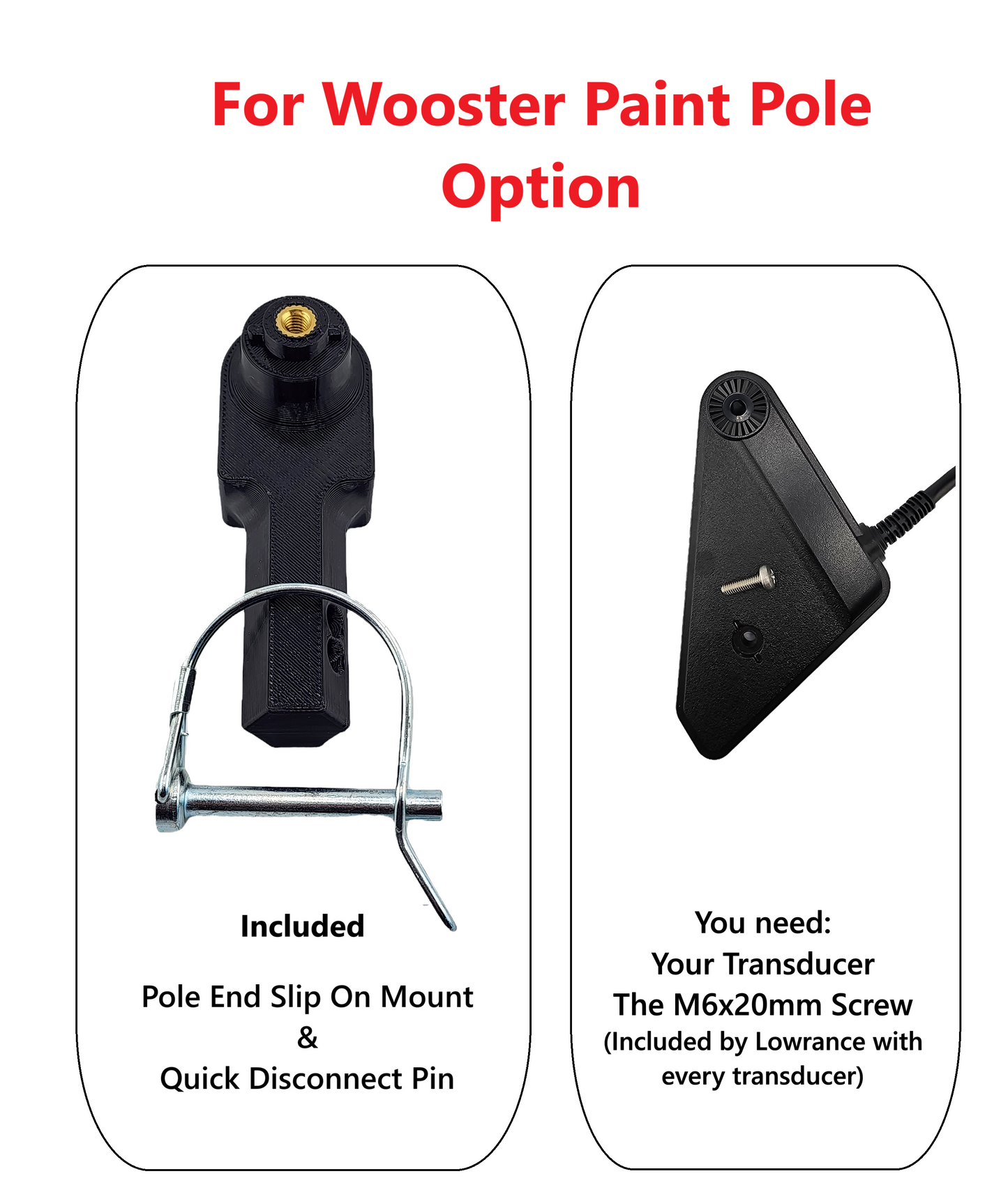

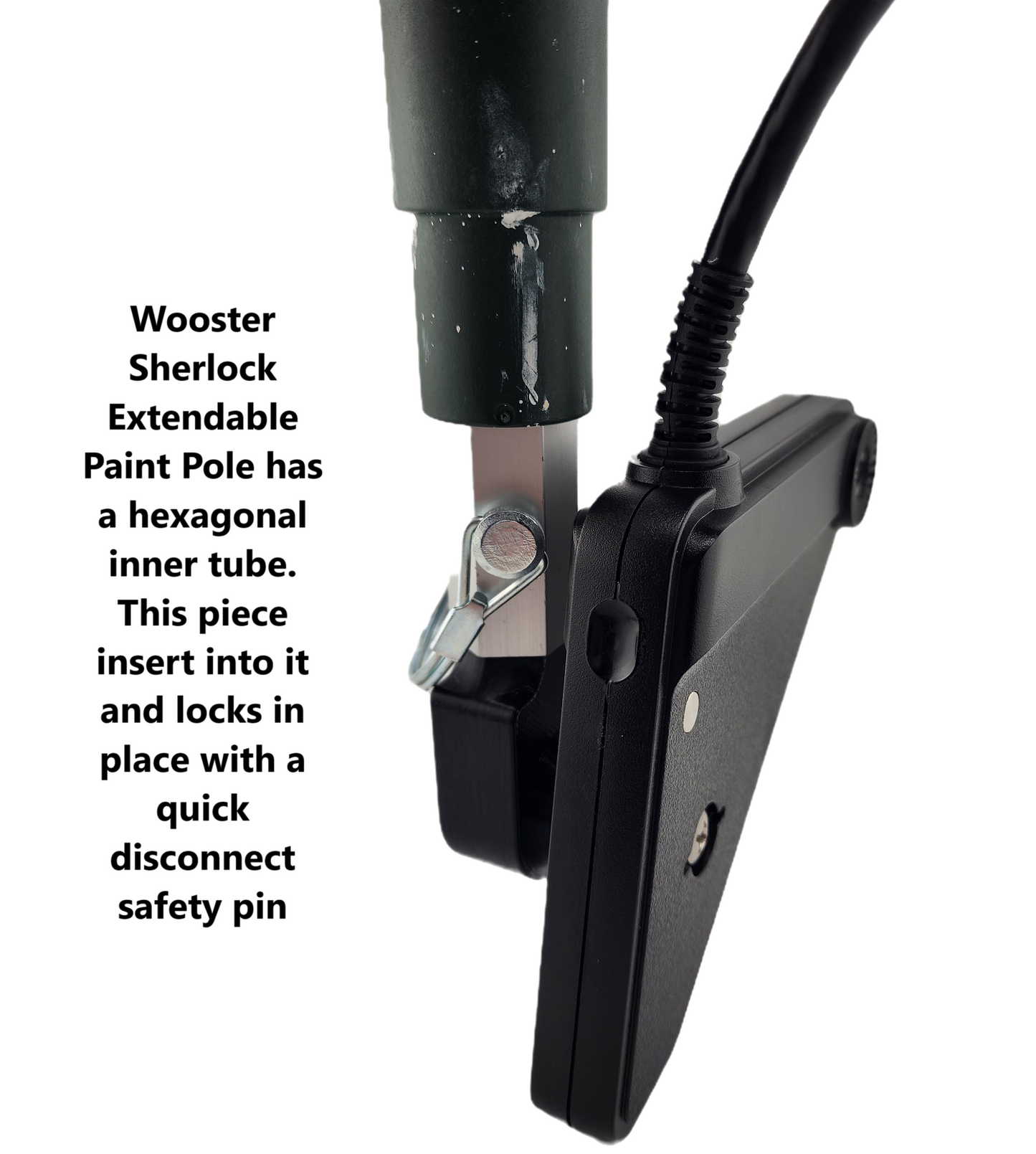

Hex Insert for Wooster Sherlock - Fits ONLY Wooster Sherlock extendable paint pole such as R054 or their SR090 GT series. Has quick disconnect D-ring.

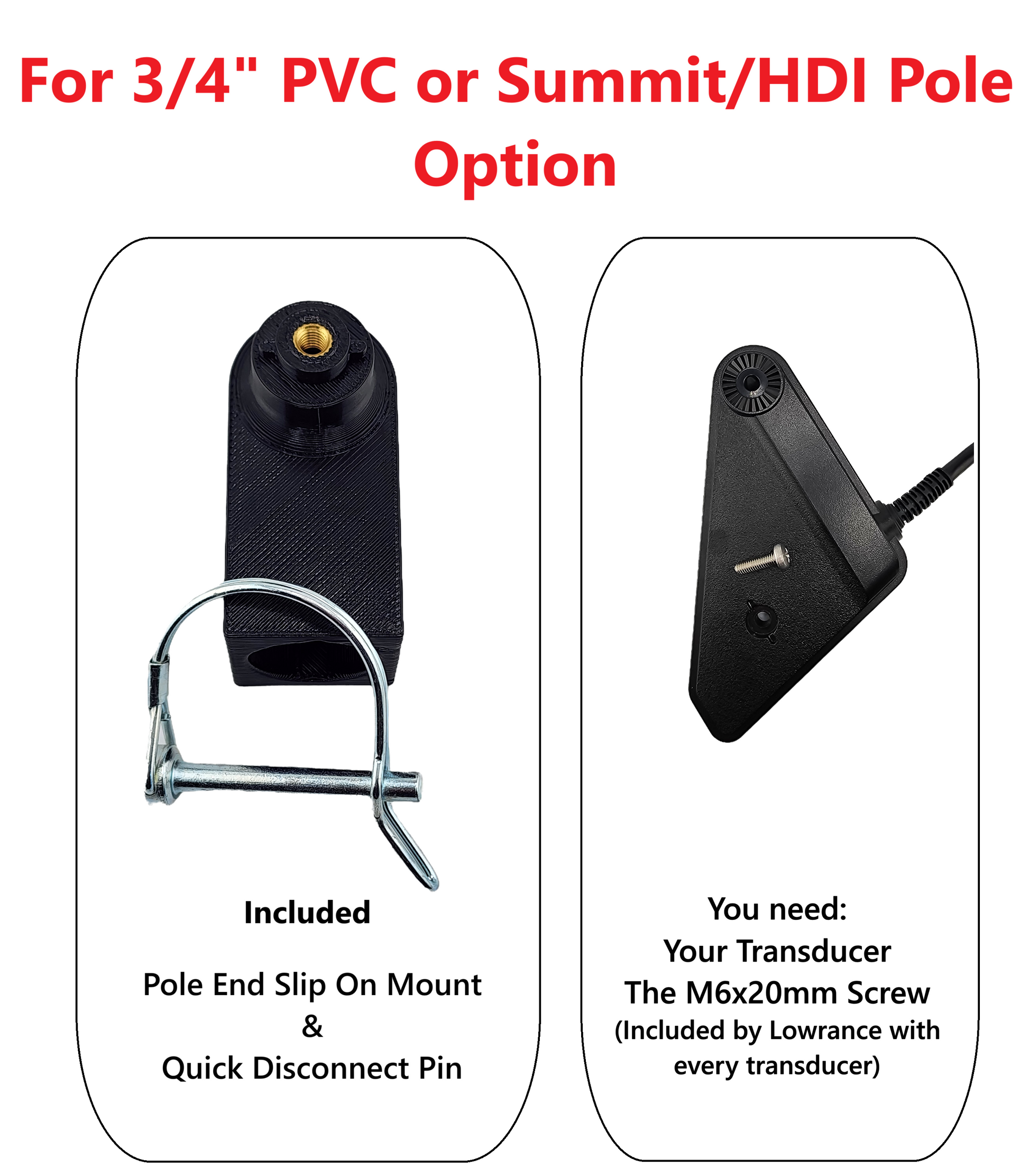

1.05" for 3/4" PVC - Standard 3/4" schedule 40 PVC has OD of 1.05". Has quick disconnect D-ring. If you have Ice Master's pole (0.98" OD), wrap 5 layers of electrical tape for a more snug fit.

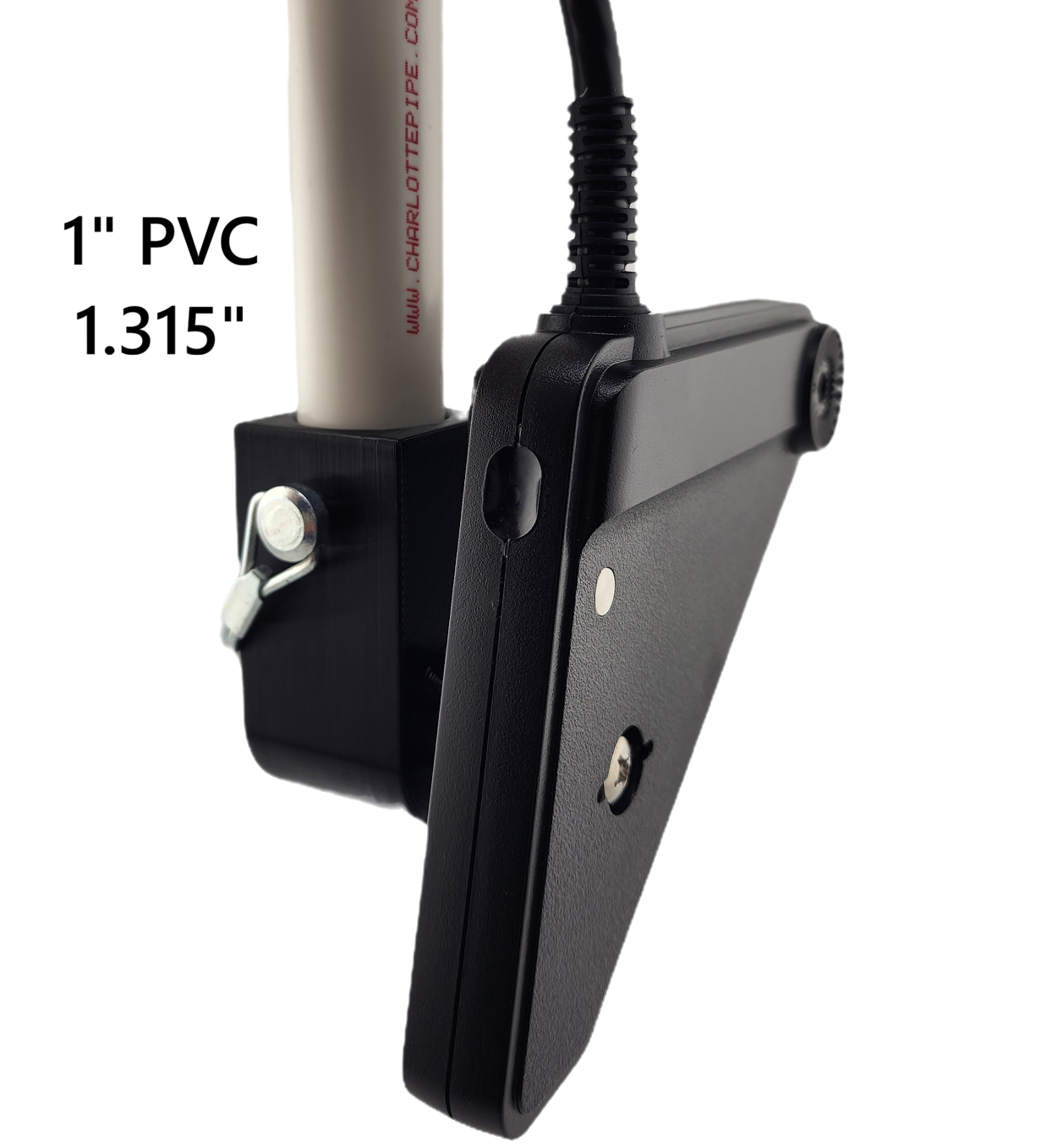

1.3" for 1" PVC - Standard 1 inch PVC has outside diameter of 1.315". Has quick disconnect D-ring.

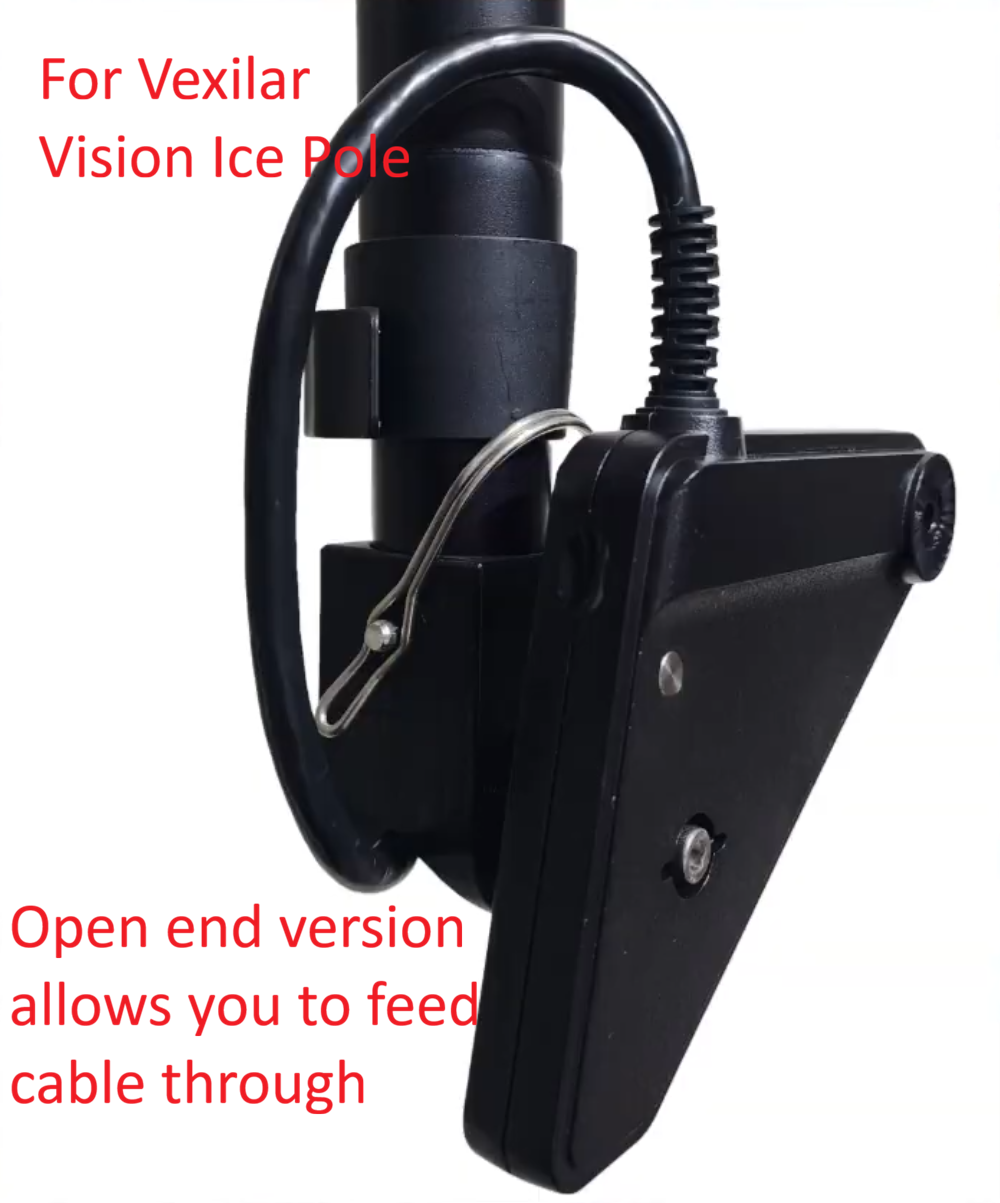

1-3/8" for Vexilar Ice Pole - End of inner tube of Vexilar ice pole. Has quick disconnect D-ring. Choose open end your closed end. Open end allows you to insert the transducer cord through. There will be a loop of the cord next to the transducer.
What's included: - Transducer mount - Quick disconnect safety pin (NA for Clamp Style) - 4x stainless steel machine screw and 4x nuts (Clamp Style only)
