Pole Mount Kit for BIKE Repair Stand and WOOSTER Paint Pole

Pole Mount Kit for BIKE Repair Stand and WOOSTER Paint Pole

$79.99 USD
$79.99 USD $79.99 USD
Sale Sold out
Handle Option
Transducer Type
Please look at ALL the pictures and read the FULL description. Thank you!

Don't want to fork out $350+ for a Brew City Mount? Try the bike repair stand instead. It only costs $29.99 on Amazon. It's much more solid than the RAM mount in my experience. I like the Wooster pole itself because it can be collapsed into a very short piece for storage. It's only $22 at Home Depot with free shipping.

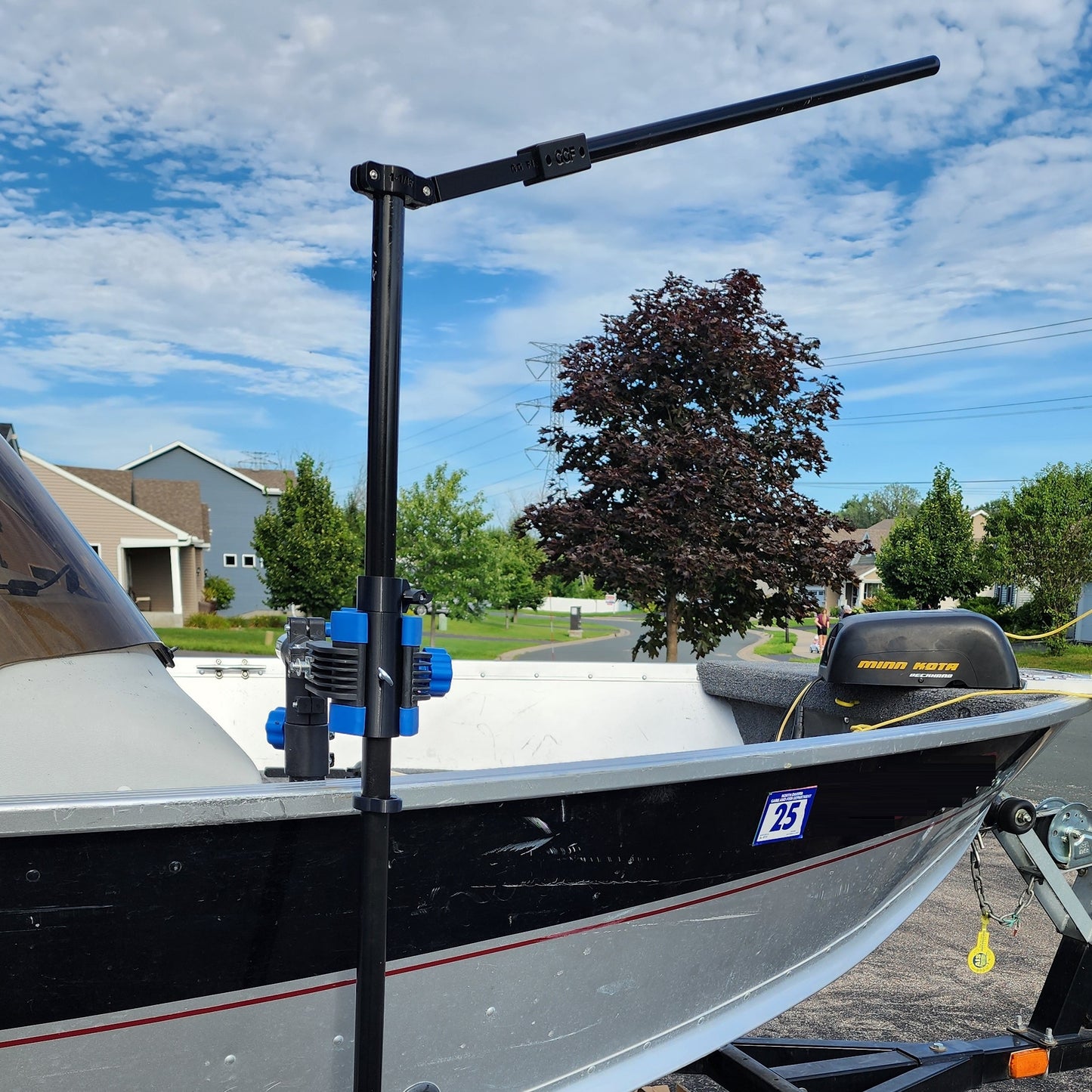

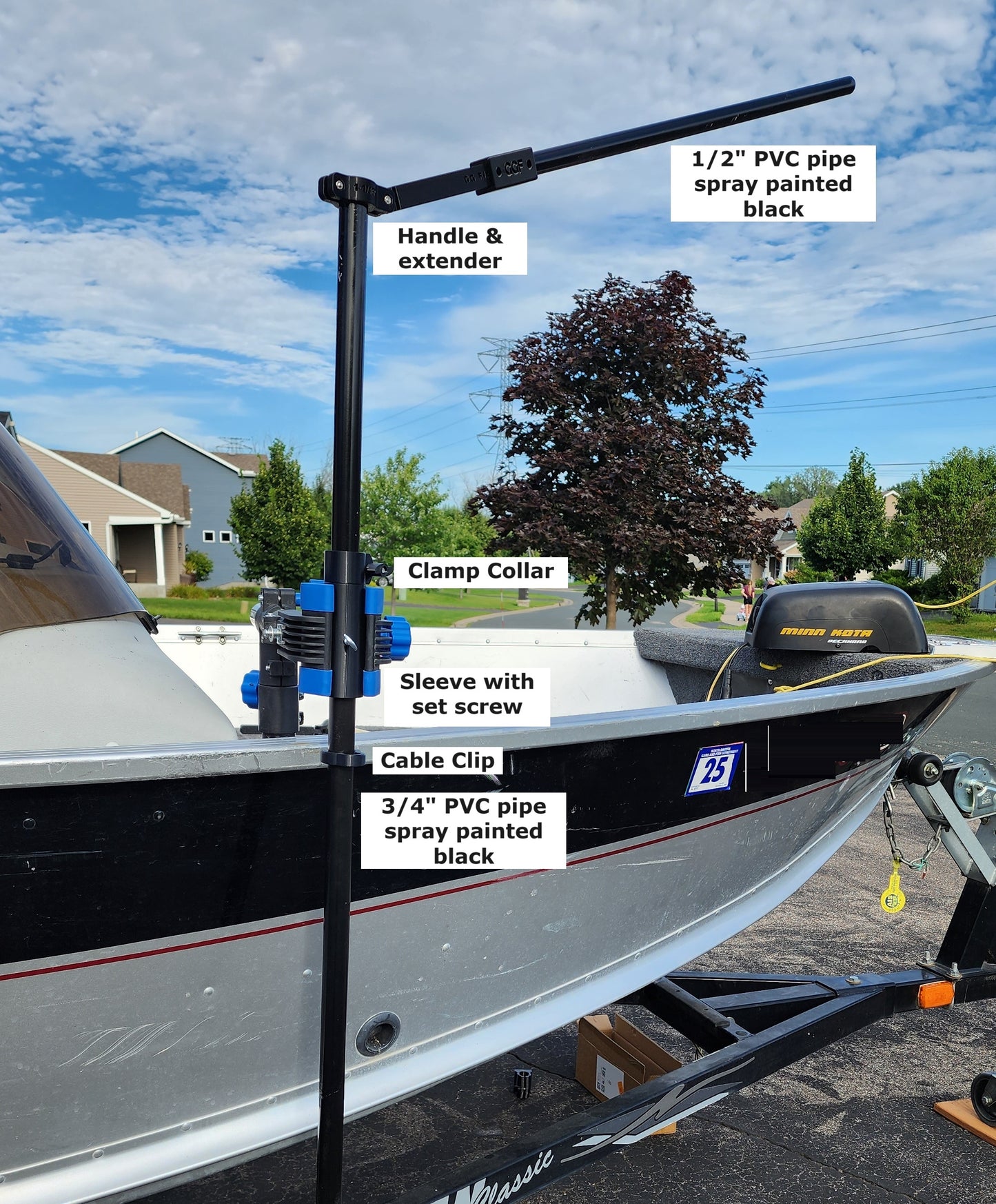

You need to purchase the bike repair stand from Amazon (link below) and PVC pipe.
If you select the 360 handle option, you need to purchase the gearless drive of your choice. (link below too)

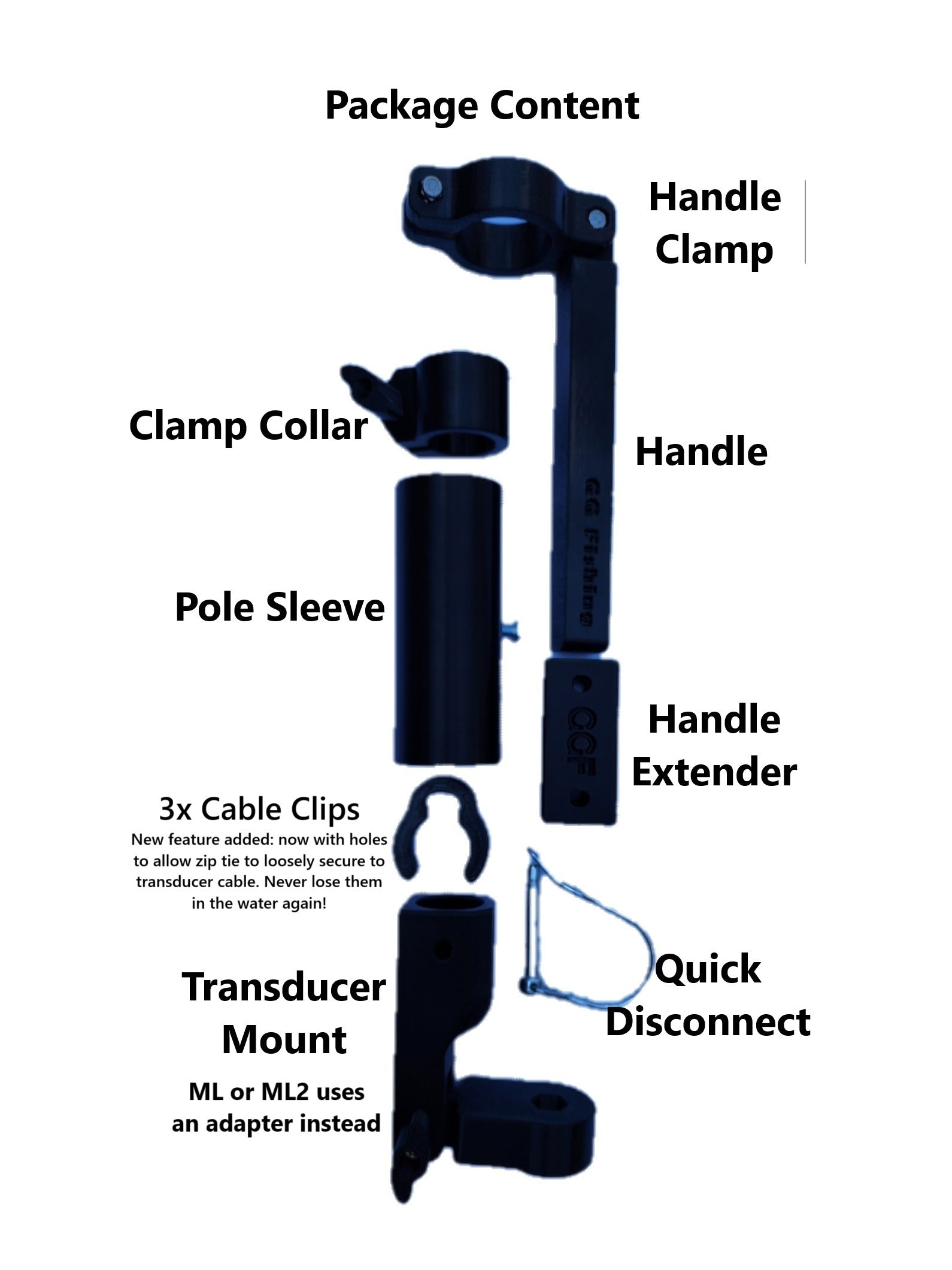

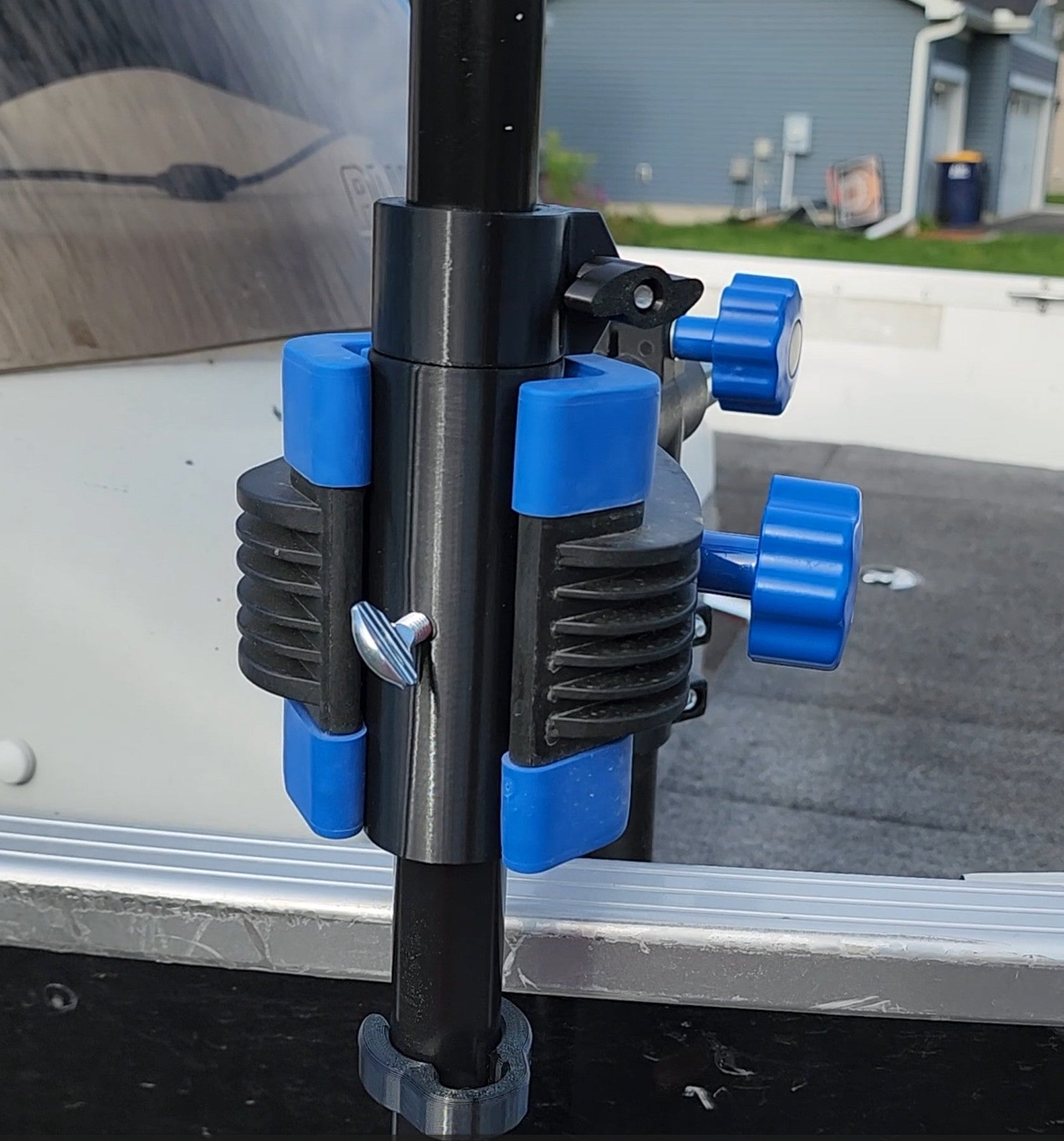

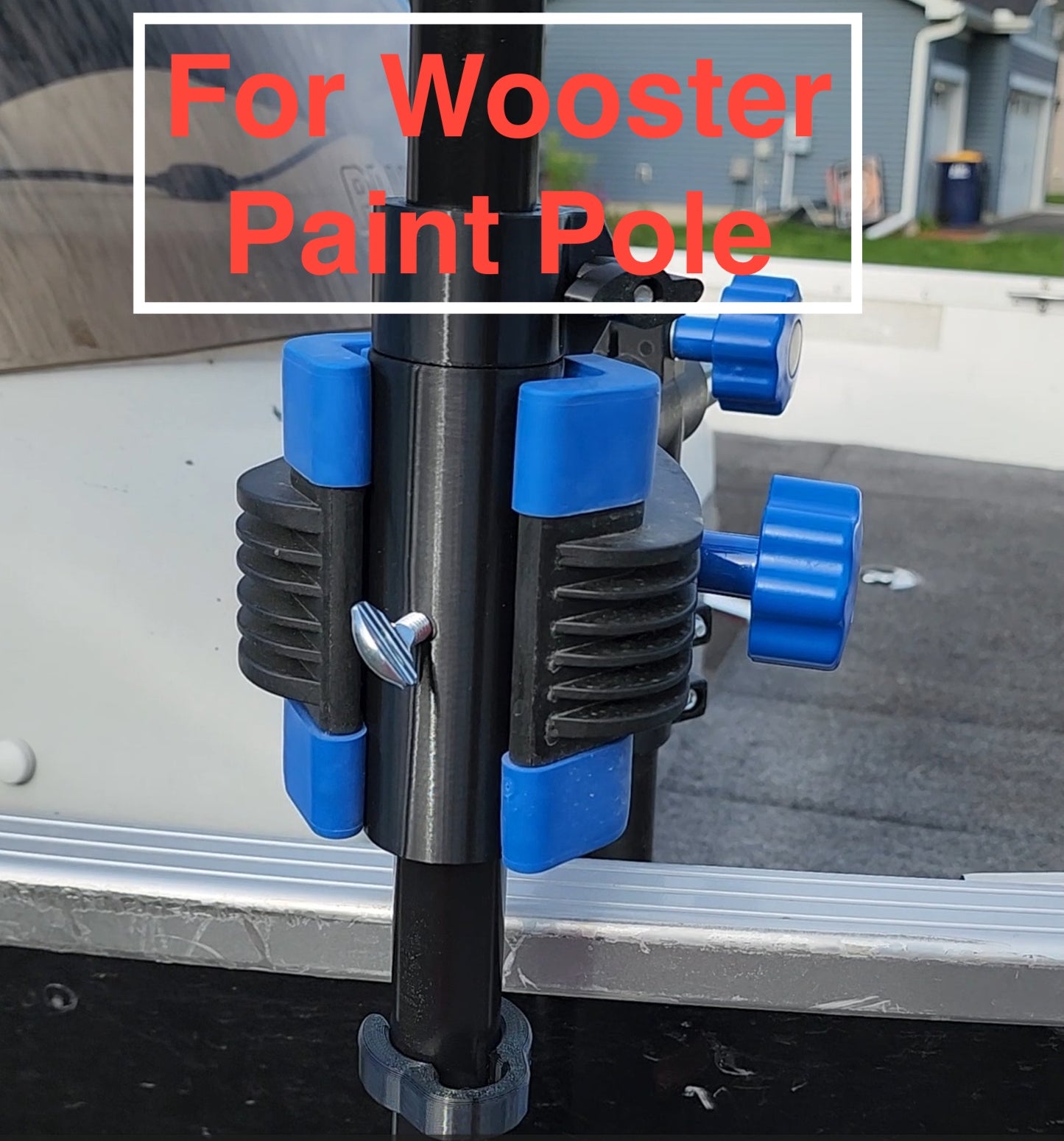

The kit is equipped with a heavy duty and robust clamp collar for easy adjustment on the fly without any tool. The big metal thumb screw allows you to easily tighten and loosen so you can either lock or rotate the pole.

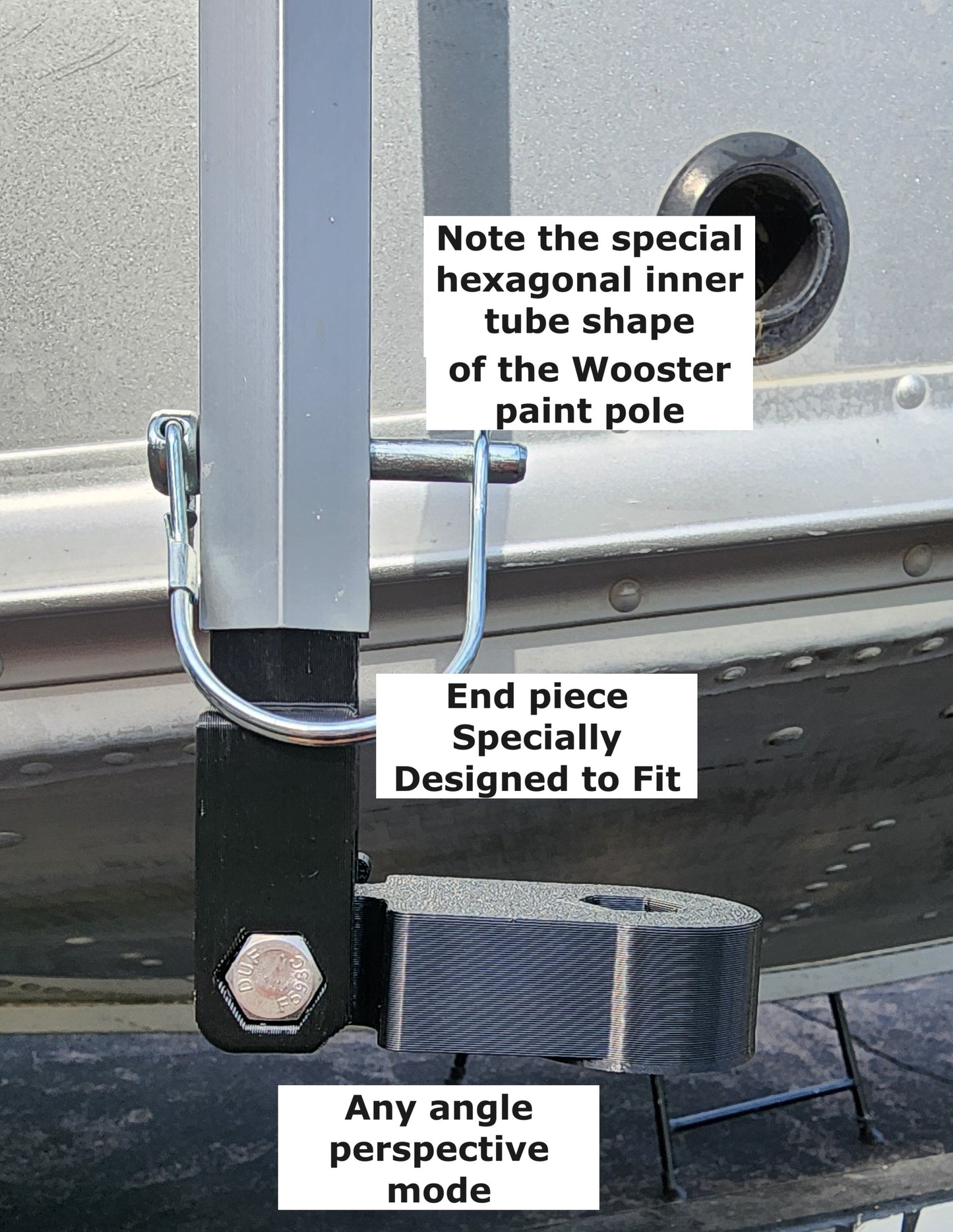

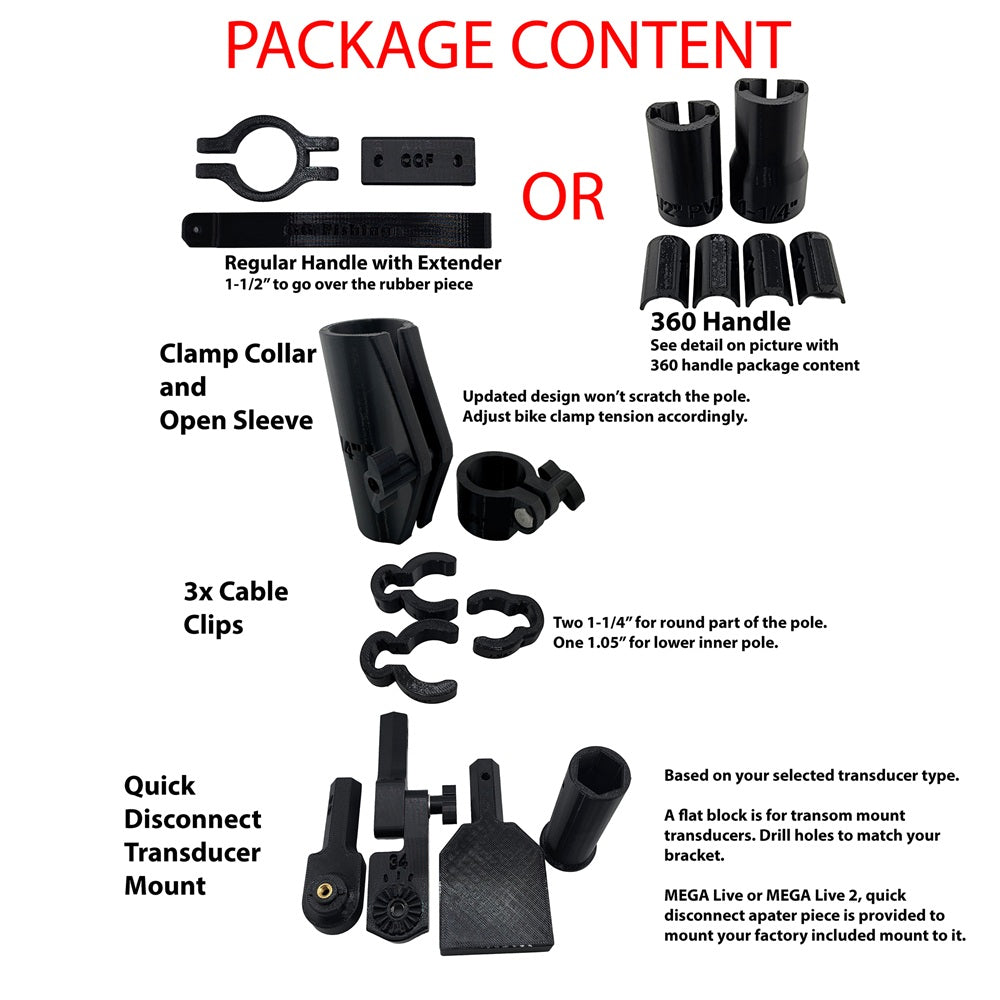

For Wooster pole, two 1-1/4" and one 1.05" cable clips are included. 1.05" fits perfectly on the hexagonal inner tube.

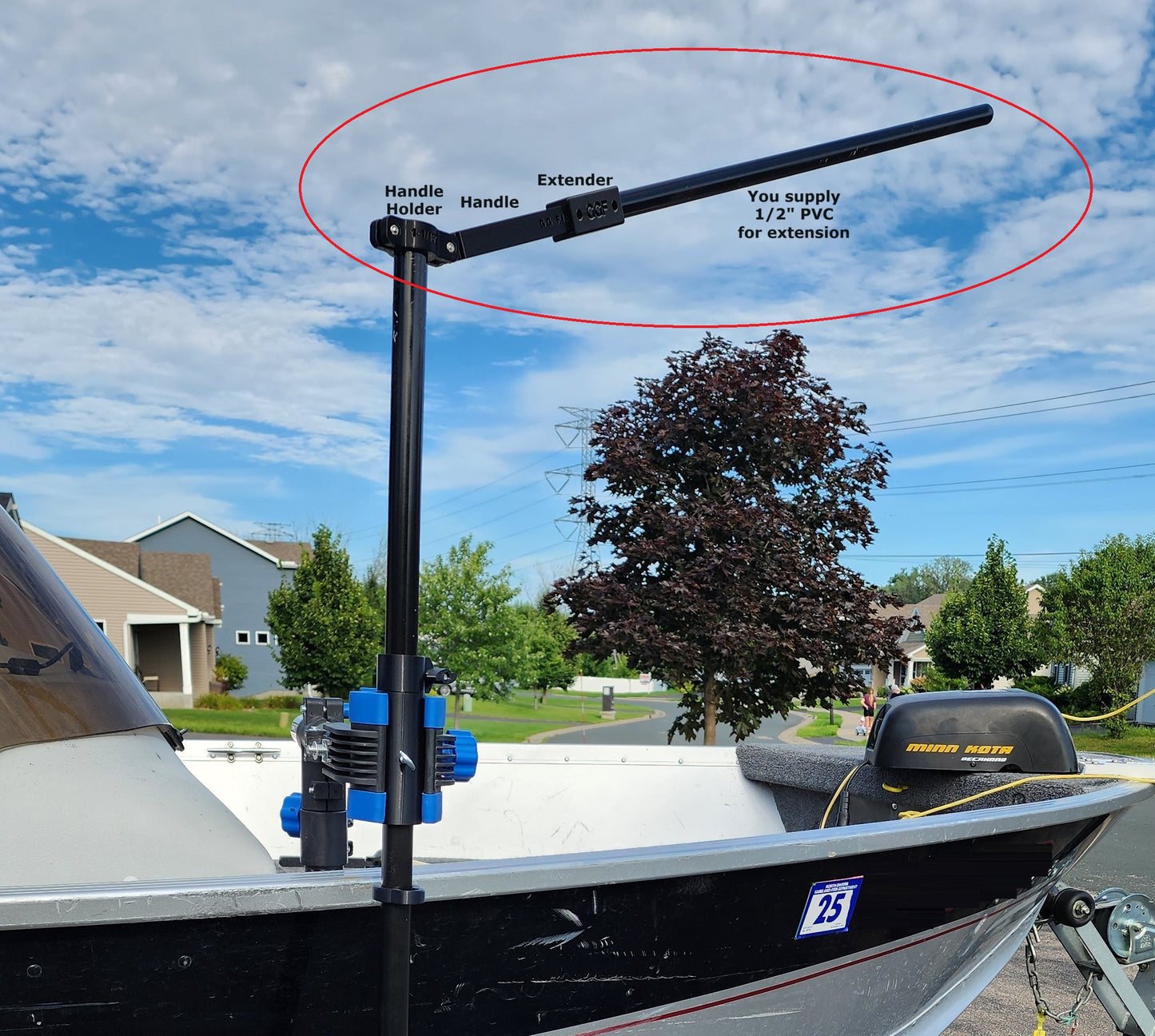

Now you have option to use regular handle or the 360 Easy Turn Handle.
Note: If you select 360 handle options, this replaces the regular handle. You will not receive the regular handle.

Below are the models of gearless angle drive I purchased and tested with this product. I can guarantee the fit on these two models. If you already own a different brand or style I can't guarantee the fit as I didn't test them.

Cal-Van Tools 90 degree 3/8" Gearless Angle Drive
Cal-Van Tools 45 degree 1/4" Gearless Angle Drive
The 90 degree 1/4" does NOT have enough clearance to rotate.

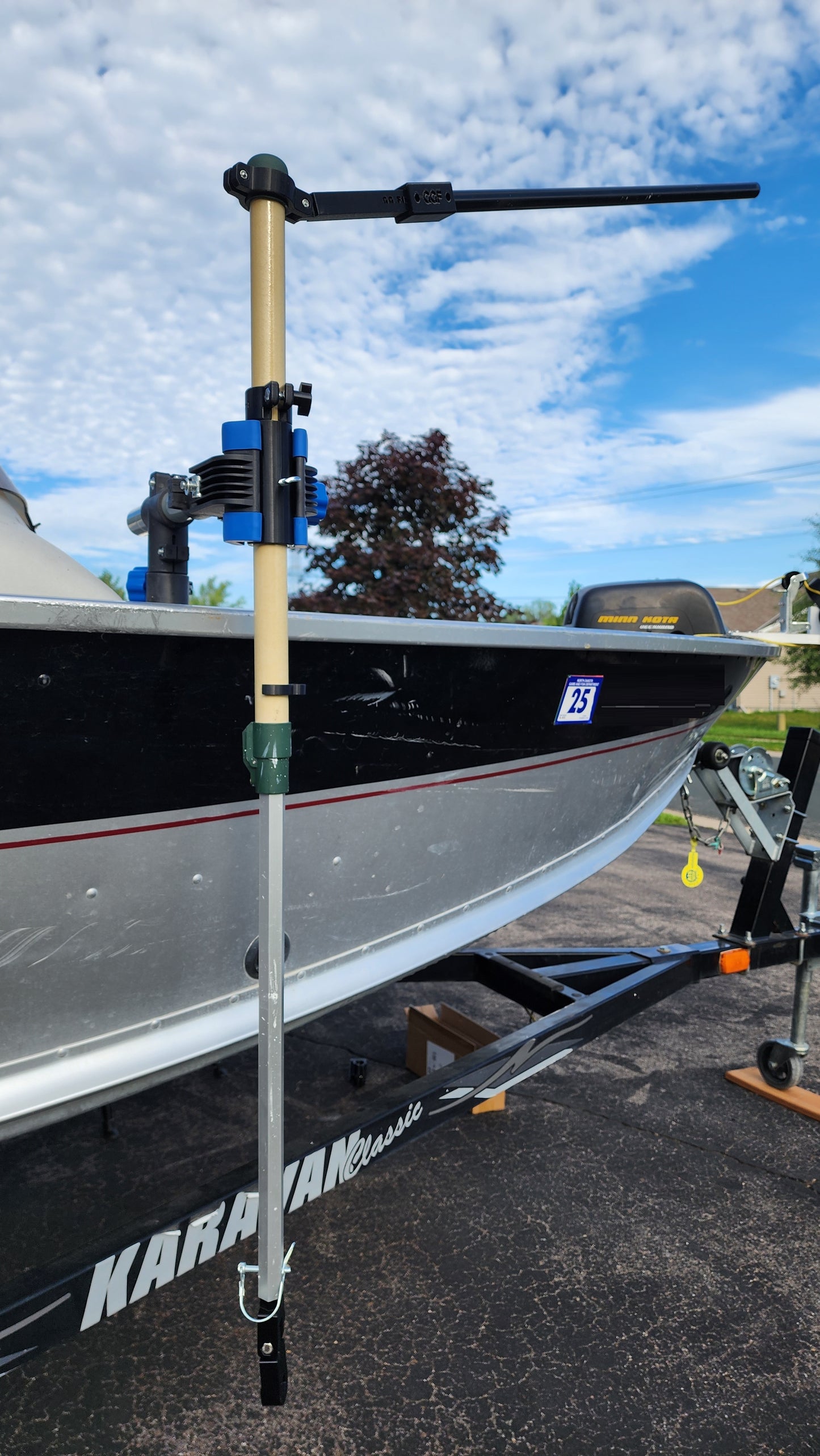

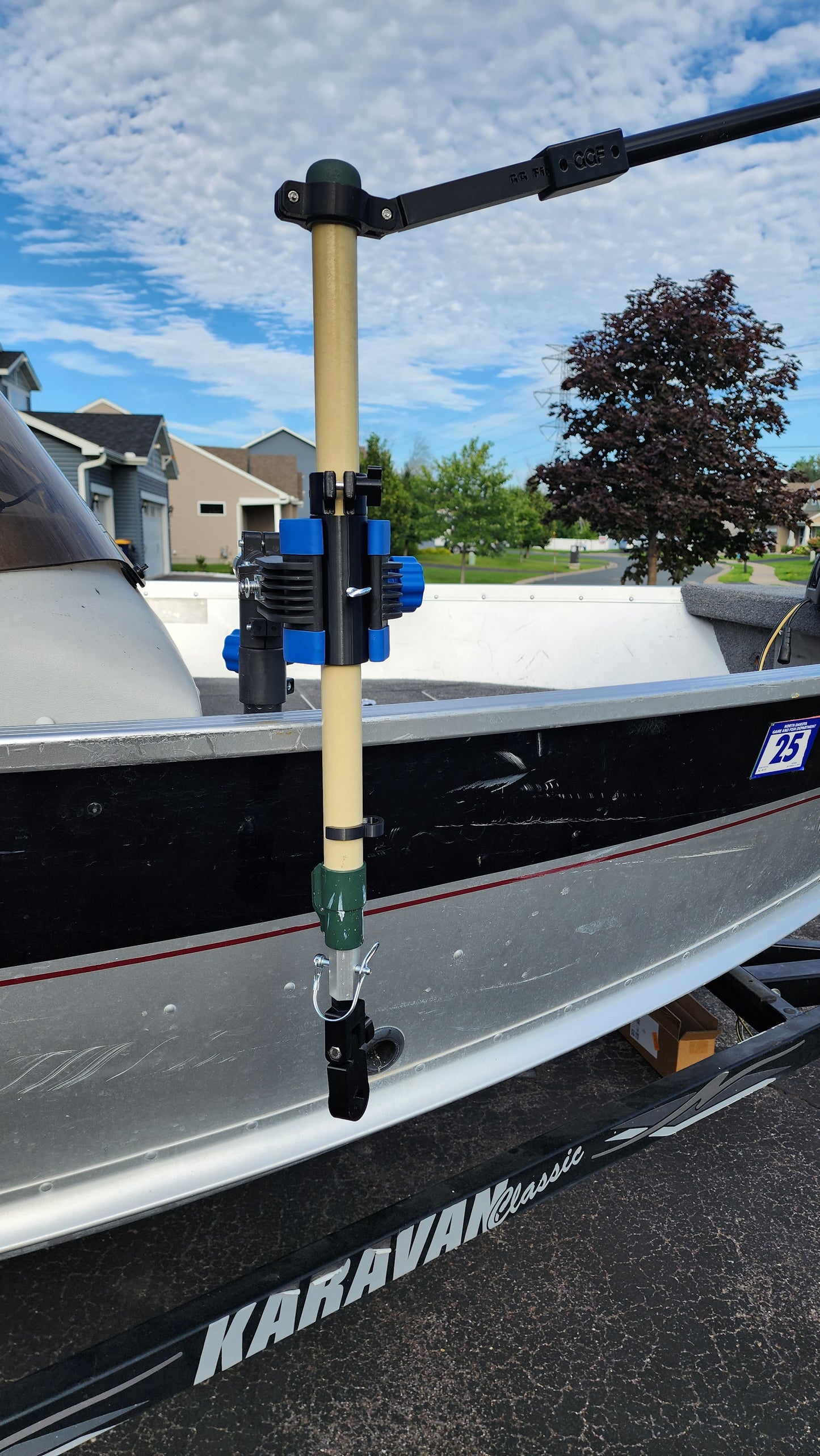

Wooster Sherlock paint pole R054 model at The Home Depot. 22.98 and free shipping.
Or the Wooster GT version at The Home Depot $26.48 and free shipping.
Bike Repair Stand I use. It has big knobs and adjustable height for $35.99
Bike Repair Stand with shorter, non-adjustable height, and locking levers $35.99
The transducer mount piece is designed specially for each model. All variations utilize your existing hardware from the transducer manufacture (screw/bolt/washer) on your current setup.
  • Garmin Livescope LVS32 - use the shoulder bolt, washer, and rubber spacer from your existing system.
  • Garmin Livescope LVS34 - use the long bolt with the big knob.
  • Garmin Panoptix PS22 - use the same knob with screw you currently use.
  • Lowrance Active Target 1 and 2- use either the shoulder bolt/washer or the knob screw. I updated the design to allow the knob screw to reach the transducer.
  • Lowrance Eagle Eye 9 - use your existing small screw (M6x20mm) from the factory package.

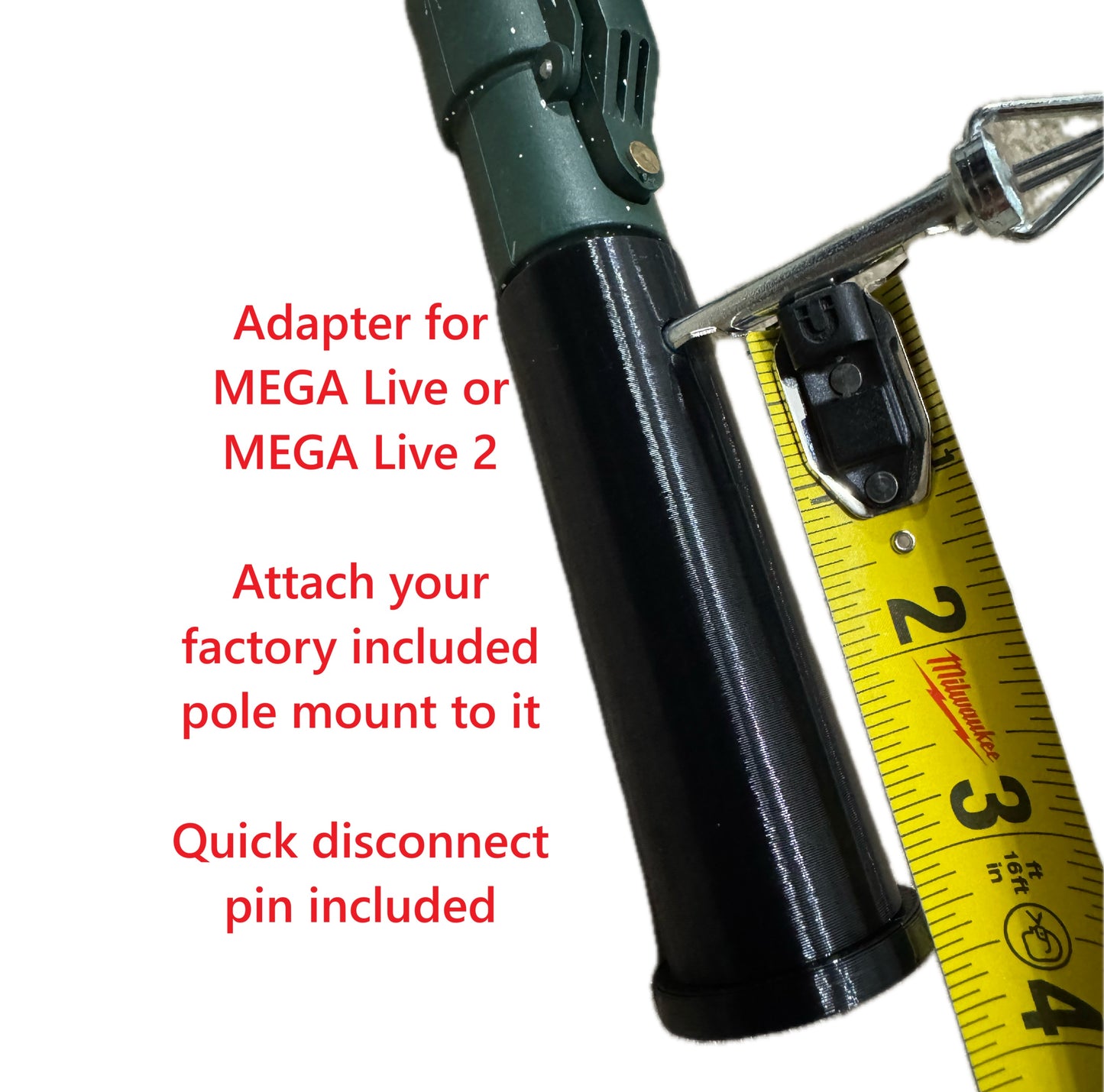

  • MEGA Live and ML2- An adapter for the Wooster pole or the 3/4 PVC is included. The outside diameter of the adapter is 1-1/4" to allow you to attach your factory included pole mount hardware.

Supports all three viewing modes, Forward, Down, and Perspective! Not applicable to Lowrance Eagle Eye 9 and transom mount transducers. These are fixed position.
