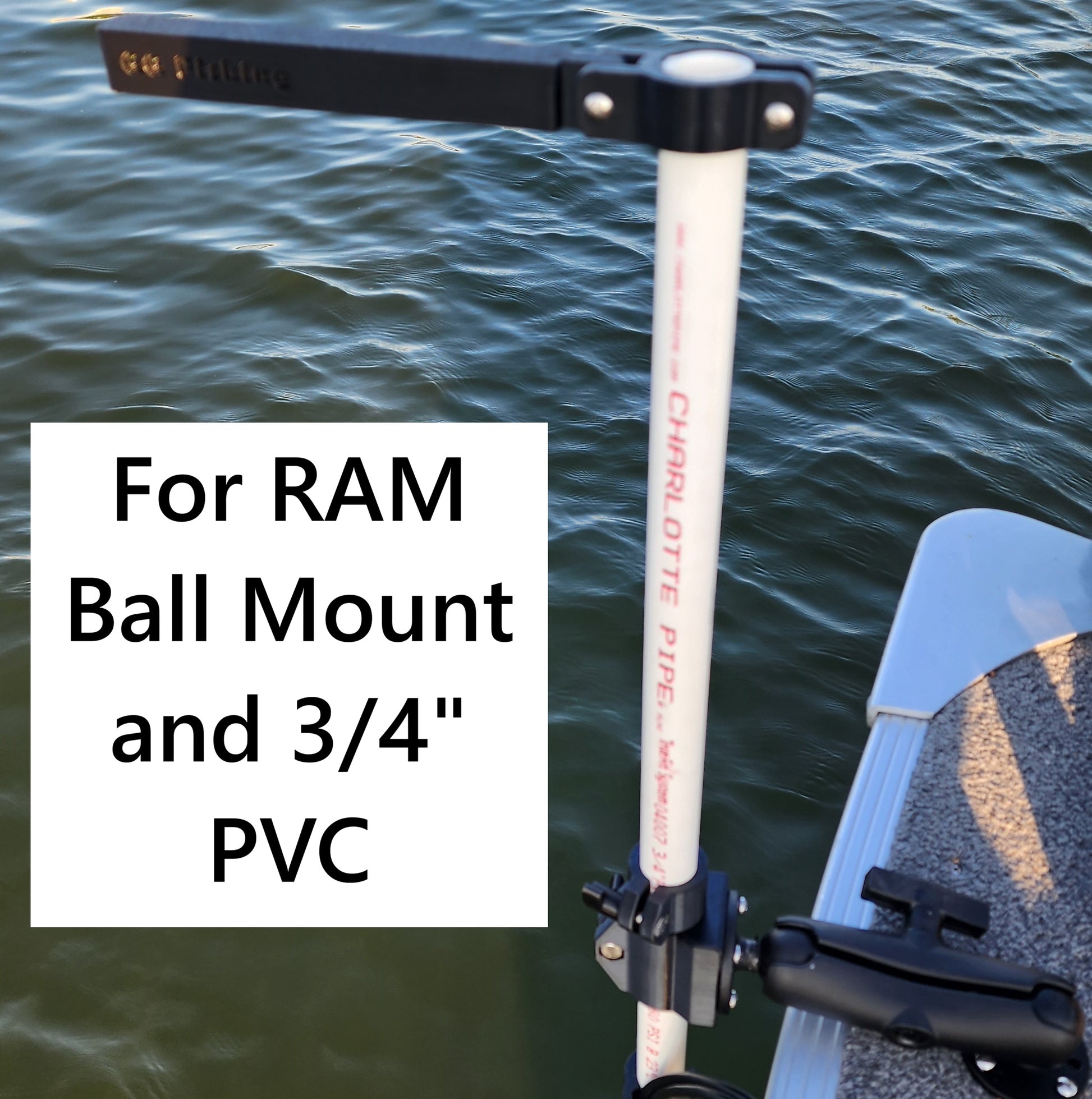

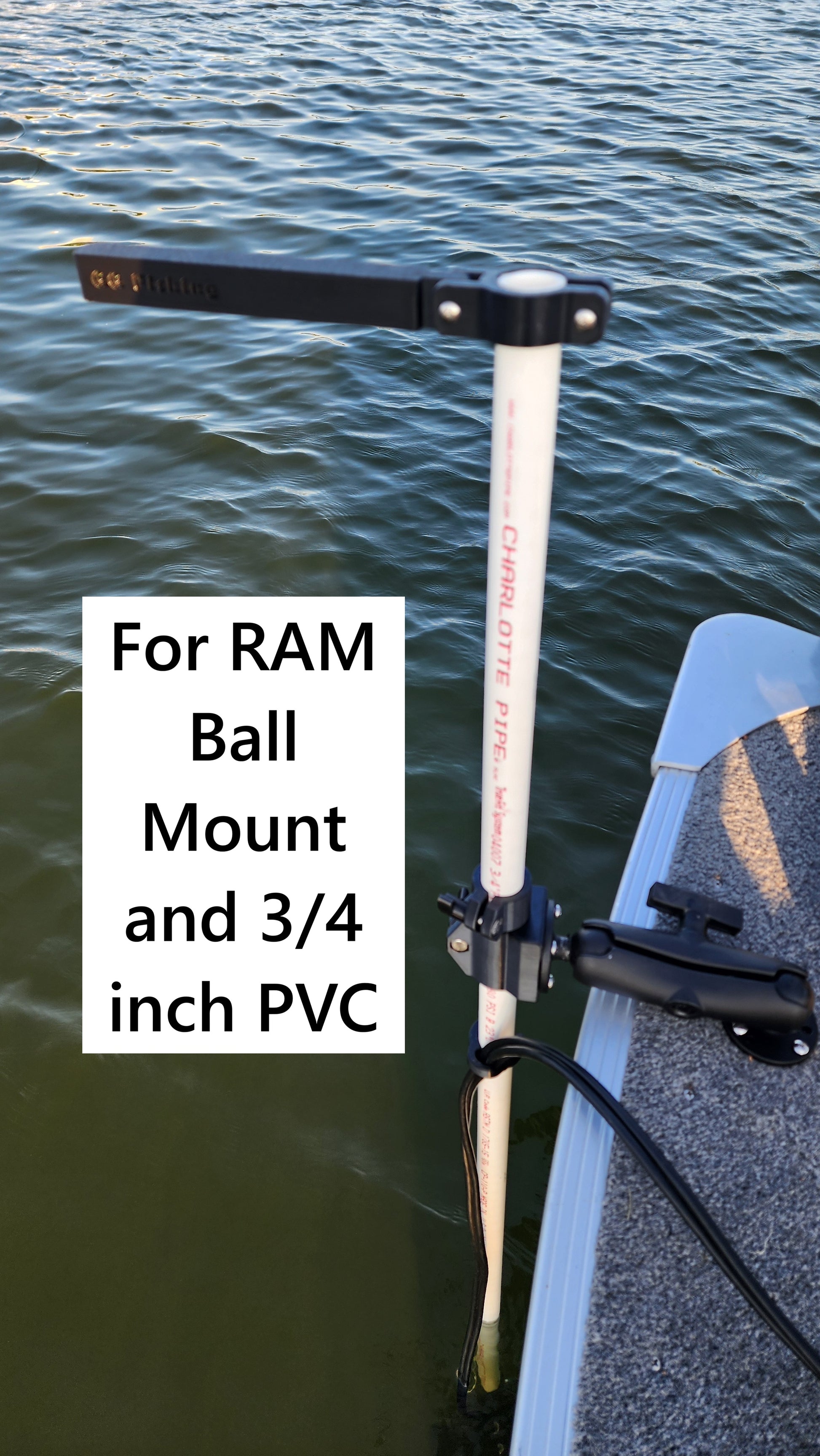

Mounting your livescope on a PVC pipe? This kit completes your setup.

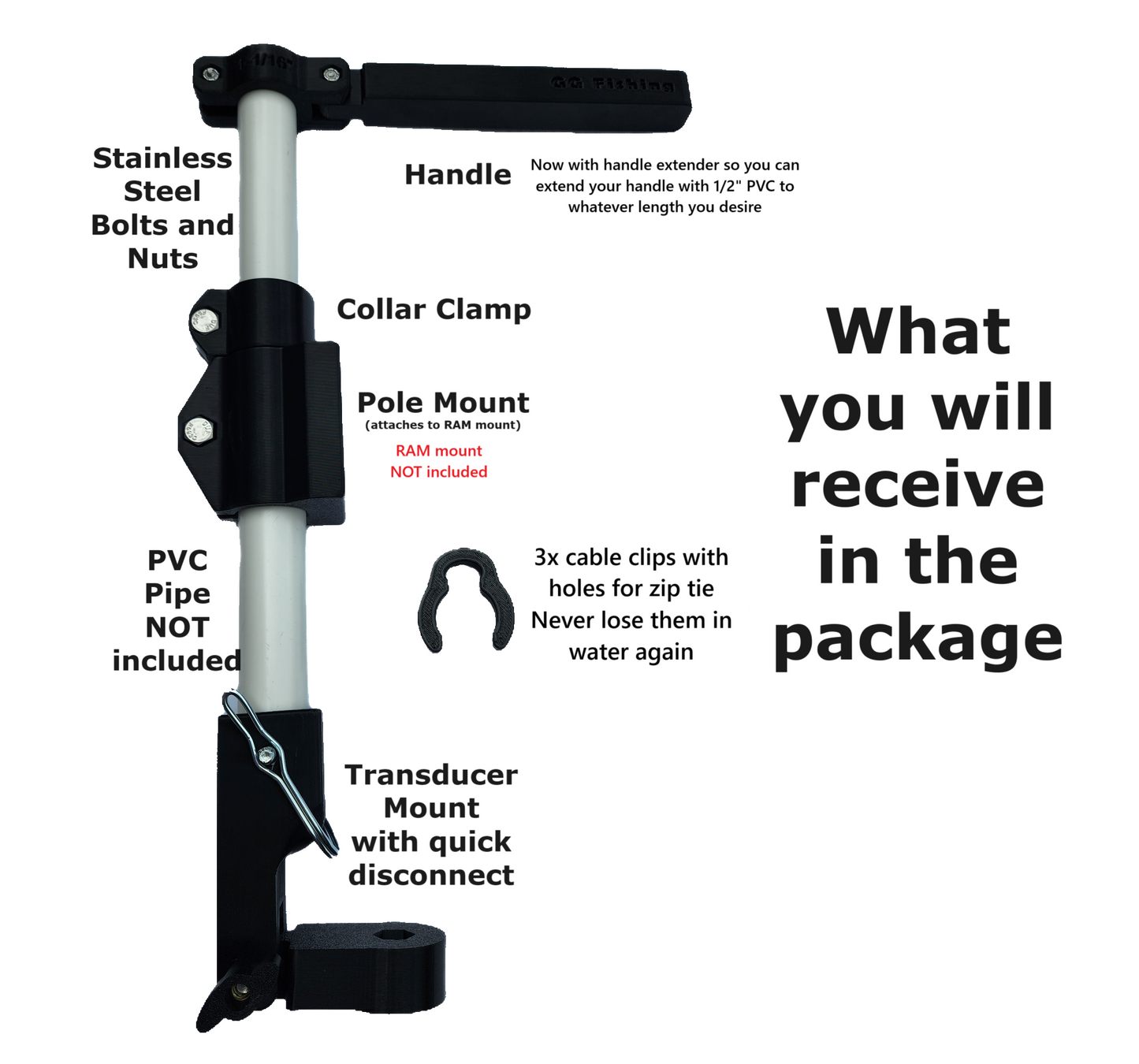

The kit is equipped with heavy duty and robust clamps for easy adjustment on the fly without any tool. Three cable clips are included to snap onto the PVC pipe to hold the transducer cable along the pole. Latest version now added holes for zip ties to secure the clips to the transducer cable so you don't loose them in the water when they pop off the pole.
The end piece is designed specially for each different model. All variations utilizes your existing hardware (bolt/washer) on your current setup.
-
Garmin Livescope LVS32 - use the shoulder bolt, washer, and rubber spacer from your existing system.
-
Garmin Livescope LVS34 - use the long bolt with the big knob.
-
Garmin Panoptix PS22 - use the same knob with screw you currently use.
- Lowrance Active Target 1 and 2- use either the shoulder bolt/washer or the knob screw. I updated the design to allow the knob screw to reach the transducer.
- Lowrance Eagle Eye 9 - Use the factory included M6x20mm screw from Lowrance.
-
MEGA Live - use your existing small screw and lock washer. It needs to be loose as it needs to rotate.
Supports all three viewing modes, Forward, Down, and Perspective! Not applicable to Lowrance Eagle Eye and transom mount.

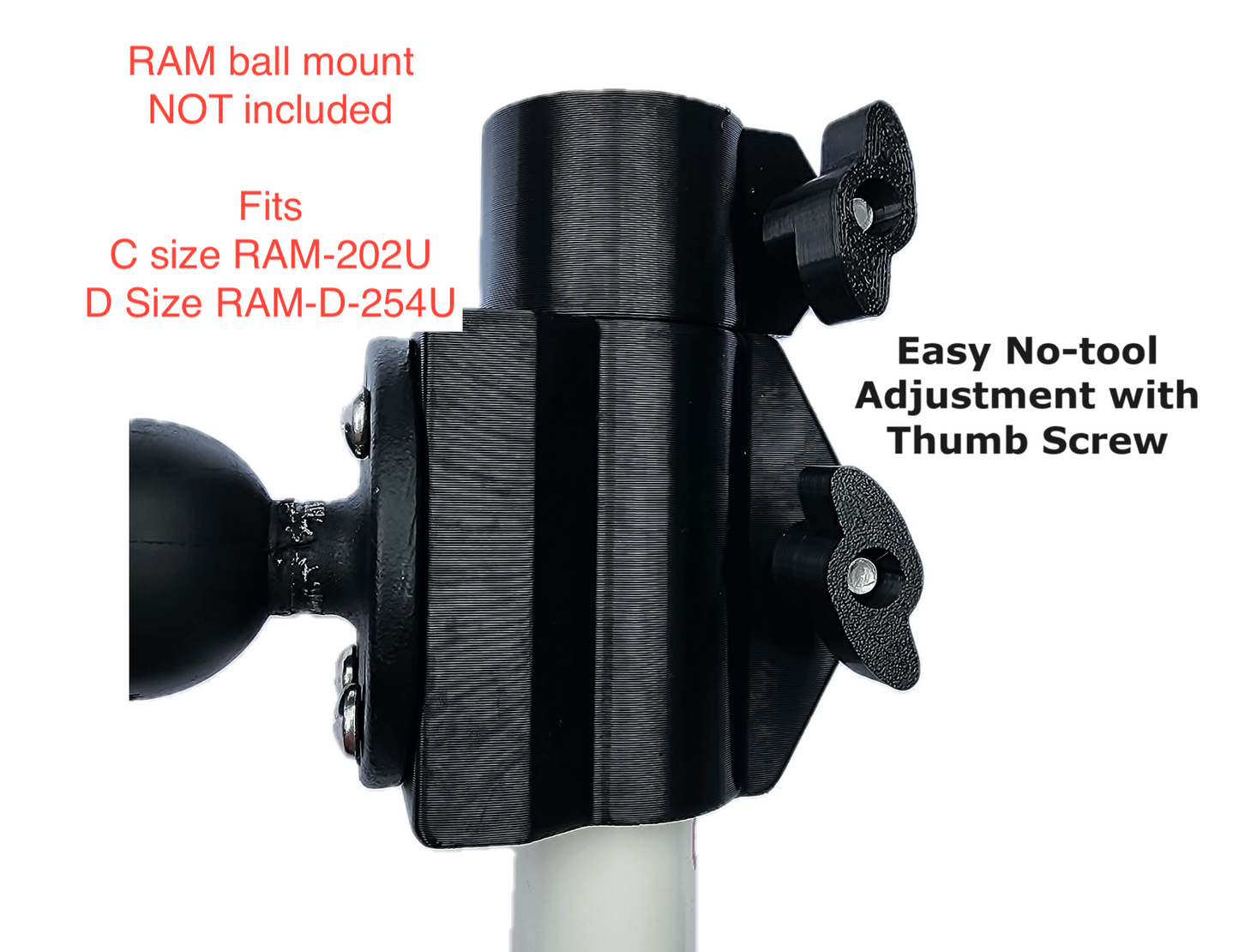

RAM mount is not included. C size 1.5" ball at minimum is recommended for stability and holding power. The middle piece is designed specifically to fit the hole pattern of the C size round base mount (RAM-202U). If you are using D size ball, the model with AMPS hole pattern base is RAM-D-254U.
4-Hole AMPS: 1.181" x 1.496". There are many knockoff versions on Amazon as well. Be sure to match the hole pattern.
