Pole Mount Kit for BIKE Repair Stand and 3/4" PVC

Pole Mount Kit for BIKE Repair Stand and 3/4" PVC

$79.99 USD
$79.99 USD $79.99 USD
Sale Sold out
Ice Fishing
Handle Option
Transducer Type

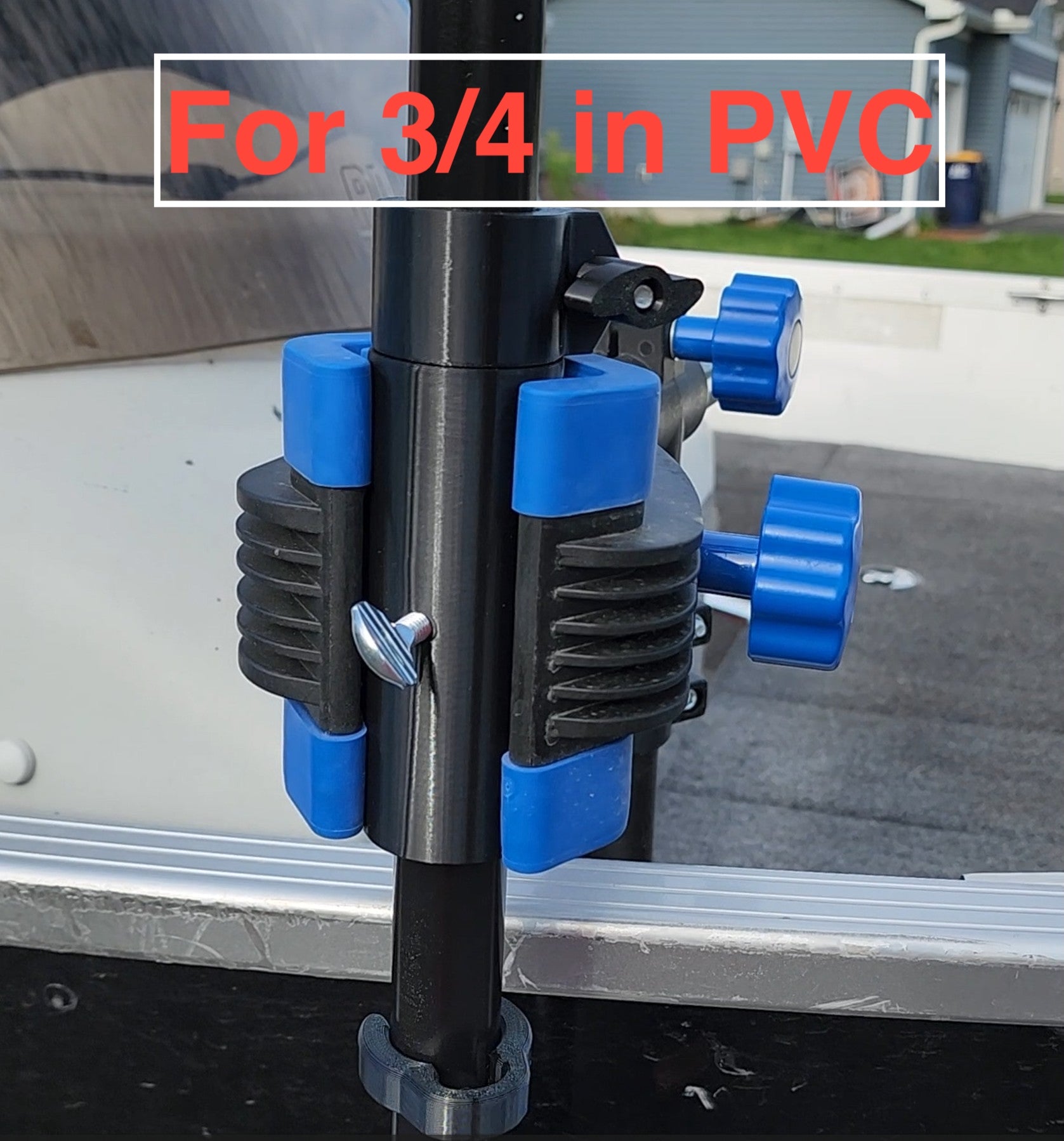

Don't want to fork out $350+ for a Brew City Mount? Try the bike repair stand instead. It only costs $29.99 on Amazon. It's much more solid than the RAM mount option in my experience. This kit completes your setup whether you use a piece of PVC pipe or the extendable Wooster Sherlock paint pole. I like the Wooster pole itself because it can be collapsed into a very short piece for storage. It's only $22 at Home Depot with free shipping.

The kit is equipped with a heavy duty and robust clamp collar for easy adjustment on the fly without any tool. The big metal thumb screw allows you to easily tighten and loosen so you can either lock or rotate the pole.

3x Cable Clips are included. Use a zip tie to secure them to your transducer cable so you'll never lose them in the water!

Now you have option to use regular handle or the 360 Easy Turn Handle.

Below are the models of gearless angle drive I purchased and tested with this product. I can guarantee the fit on these two models. If you already own a different brand or style I can't guarantee the fit as I didn't test them.

Cal-Van Tools 90 degree 3/8" Gearless Angle Drive
Cal-Van Tools 45 degree 1/4" Gearless Angle Drive
The 90 degree 1/4" does NOT have enough clearance to rotate.


The transducer mount piece is designed specially for each model. All variations utilize your existing hardware from the transducer manufacture (screw/bolt/washer) on your current setup.
  • Garmin Livescope LVS32 - use the shoulder bolt, washer, and rubber spacer from your existing system.
  • Garmin Livescope LVS34 - use the long bolt with the big knob.
  • Garmin Panoptix PS22 - use the same knob with screw you currently use.
  • Lowrance Active Target 1 and 2- use either the shoulder bolt/washer or the knob screw. I updated the design to allow the knob screw to reach the transducer.
  • Lowrance Eagle Eye 9 - use your existing small screw (M6x20mm) from the factory package.

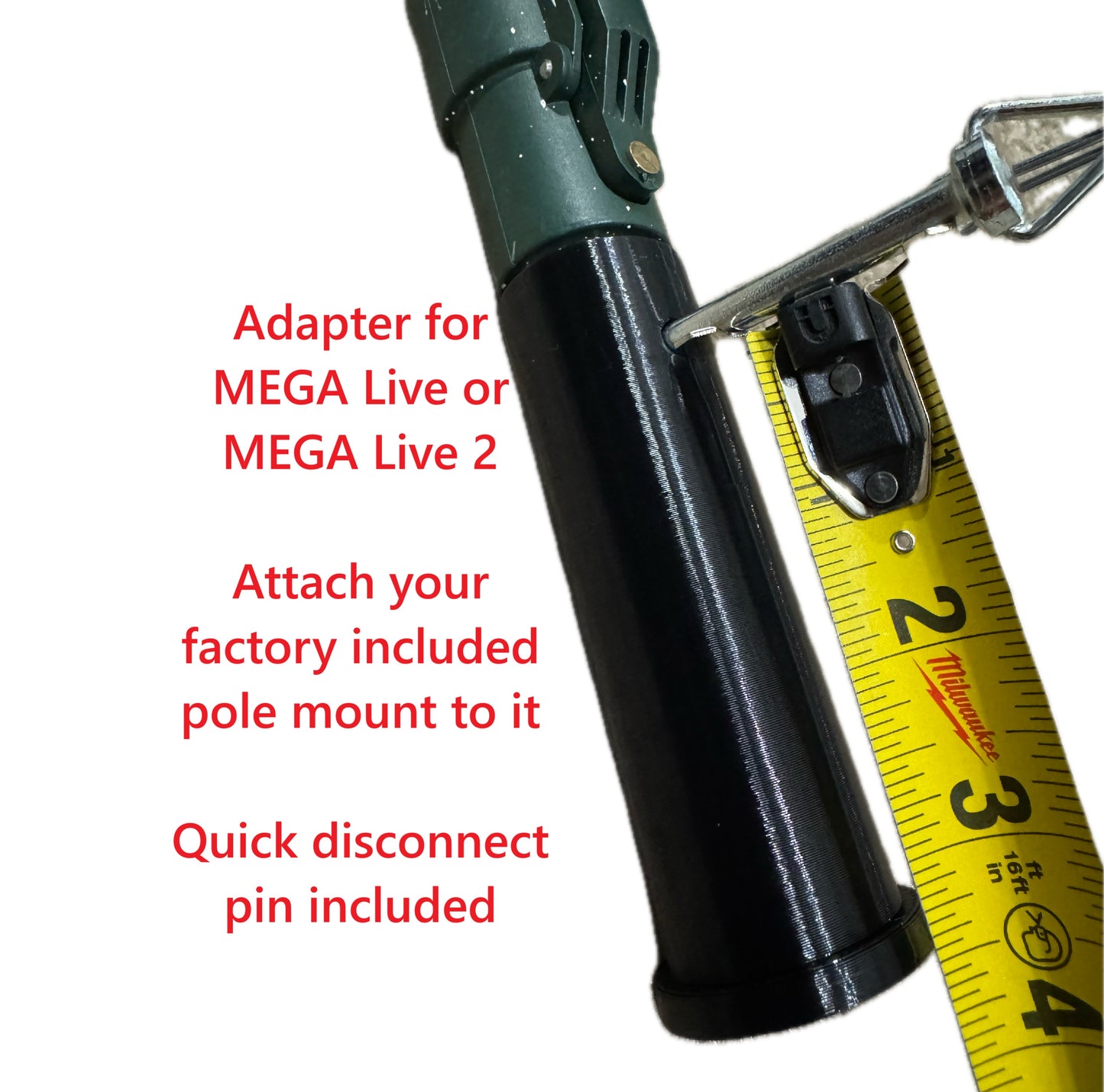

  • MEGA Live and ML2- An adapter for the Wooster pole or the 3/4 PVC is included. The outside diameter of the adapter is 1-1/4" to allow you to attach your factory included pole mount hardware.

Supports all three viewing modes, Forward, Down, and Perspective! Not applicable to Lowrance Eagle Eye 9 and transom mount transducers. These are fixed position.


Bike Repair Stand I use. It has big knobs and adjustable height for $35.99
Bike Repair Stand with shorter, non-adjustable height, and locking levers $35.99
