Pole Mount Kit for Wooster Pole and 4-hole AMPS pattern RAM mount, C or D size ball

Pole Mount Kit for Wooster Pole and 4-hole AMPS pattern RAM mount, C or D size ball

$79.99 USD
$79.99 USD $79.99 USD
Sale Sold out
Ice Fishing Conversion Tripod
Handle Option
Transducer Type
RAM mount NOT included.
Wooster Paint pole is NOT included.
Cal-Van Tools Gearless drive for 360 handle NOT included.
These are other brands' products that I use and designed my products for. Links provided below.

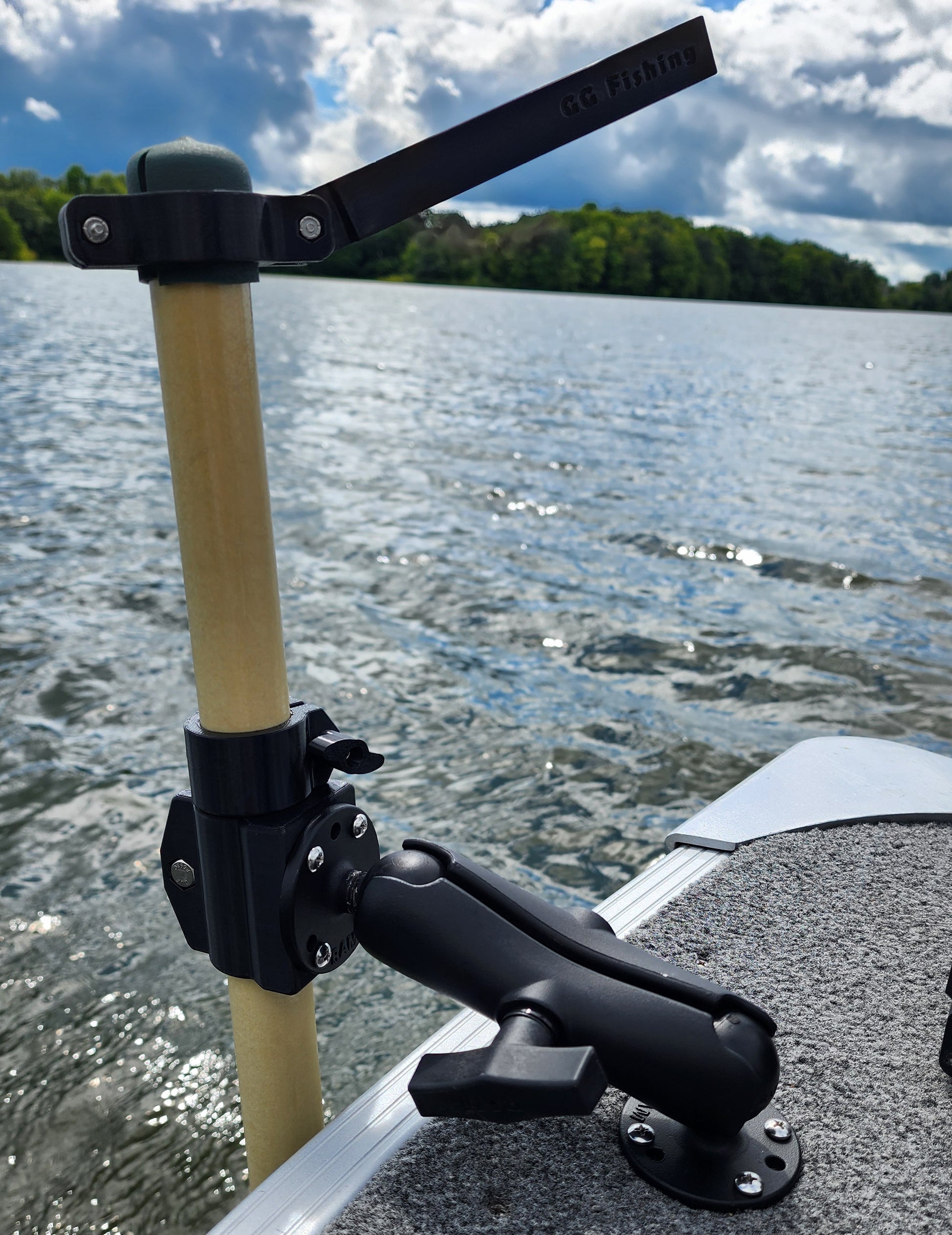

This pole mount kit allows you to mount your Livescope or Active Target 1/2 transducers on a separate pole. Supports all three viewing modes, Forward, Down, and Perspective!

This is designed to specifically fit the Wooster Sherlock paint poles and GT version with 1-1/4" OD (outside diameter). The hexagonal inner tube ensures perfect alignment every time you extend it. You can purchase the pole at your local Home Depot or online. They offer free shipping too. https://www.homedepot.com/p/Wooster-Sherlock-2-ft-4-ft-Adjustable-Extension-Pole-00R0540000/100124182


The kit is equipped with heavy duty and robust clamp style collars for easy adjustment on the fly without any tool.

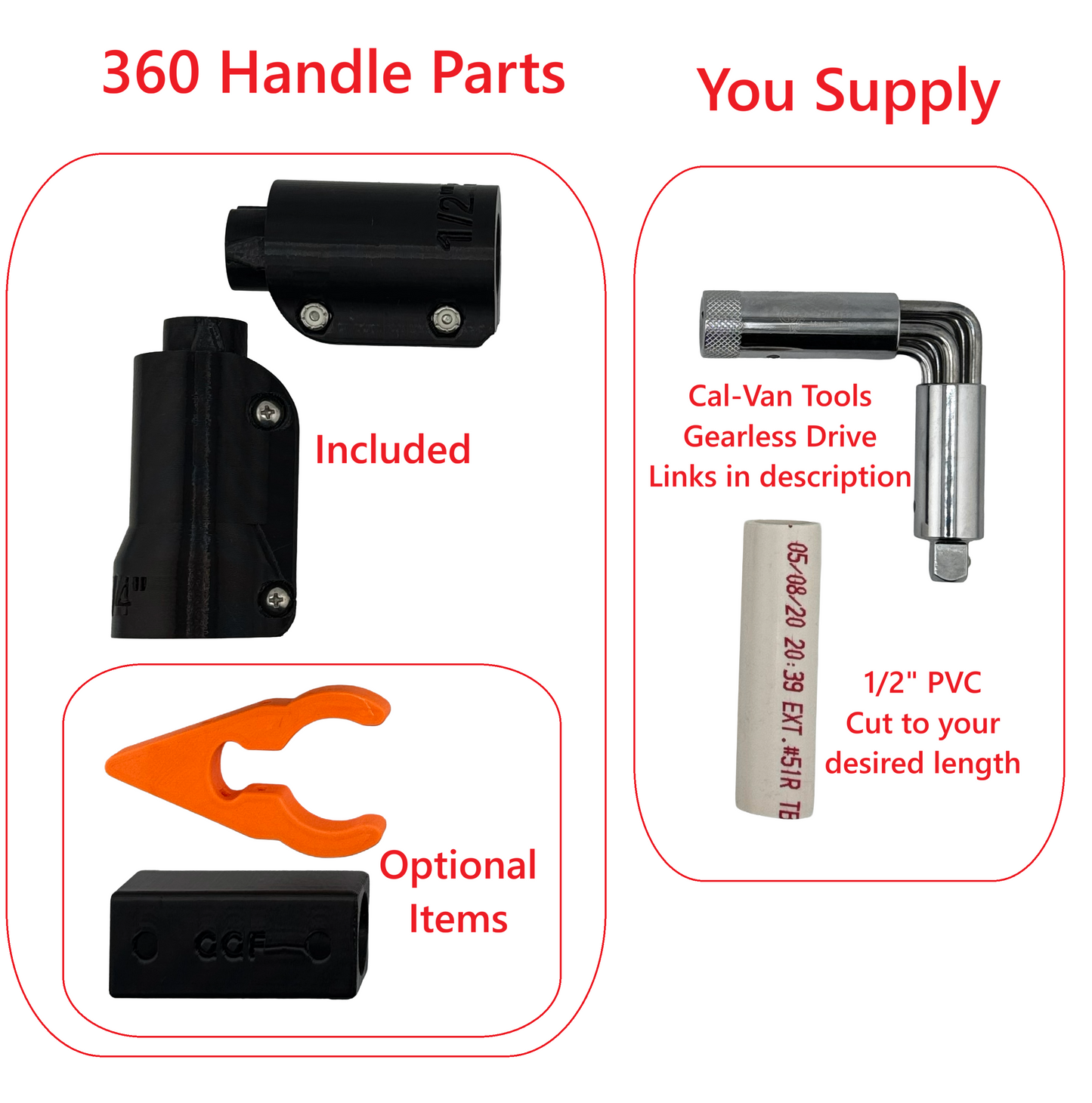

Now you have option to use regular handle or the 360 Easy Turn Handle.
Note: If you select 360 handle options, this replaces the regular handle. You will not receive the regular handle.

Below are the models of gearless angle drive I purchased and tested with this product. I can guarantee the fit on these two models. If you already own a different brand or style I can't guarantee the fit as I didn't test them.

Cal-Van Tools 90 degree 3/8" Gearless Angle Drive
Cal-Van Tools 45 degree 1/4" Gearless Angle Drive
The 90 degree 1/4" does NOT have enough clearance to rotate.

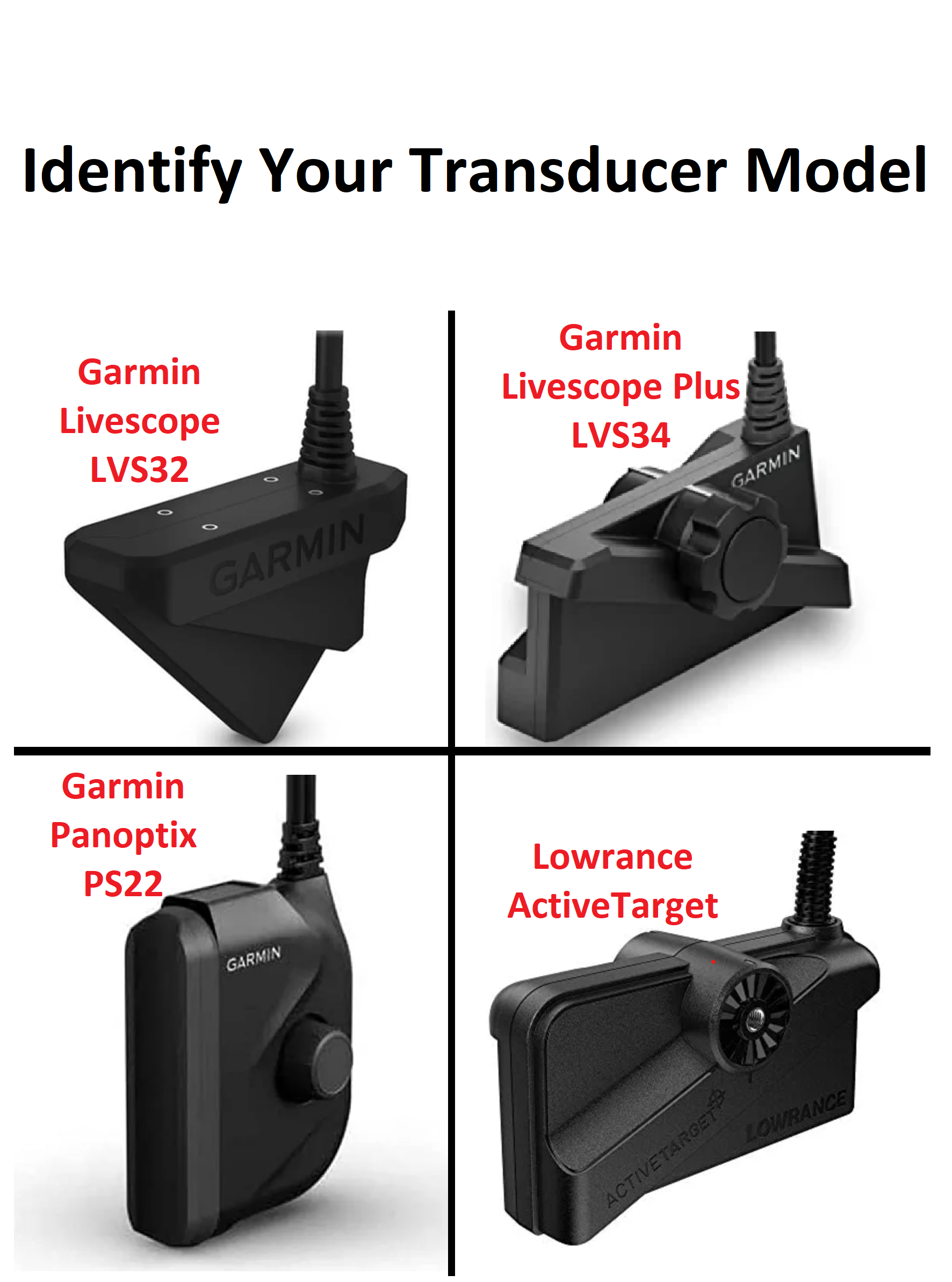

The end piece the transducer is mounted to is designed specially for each transducer model. All variations utilizes your existing hardware (bolt/washer) on your current setup. Be sure to select the option that matches your transducer model.
  • Garmin Livescope LVS32 - use the shoulder bolt, metal washer, and rubber washer from your existing system.
  • Garmin Livescope LVS34 - use the big knob with the long bolt.
  • Garmin Panoptix PS22 - use the same knob screw you currently use.
  • Lowrance Active Target - use either the shoulder bolt/washer or the knob screw. I updated the design to allow the knob screw to reach the transducer.
  • Lowrance Eagle Eye 9 - use your factory included M6x20mm screw.
  • MEGA Live and ML2- An adapter for the Wooster pole or the 3/4 PVC is included. The outside diameter of the adapter is 1-1/4" to allow you to attach your factory included pole mount hardware.

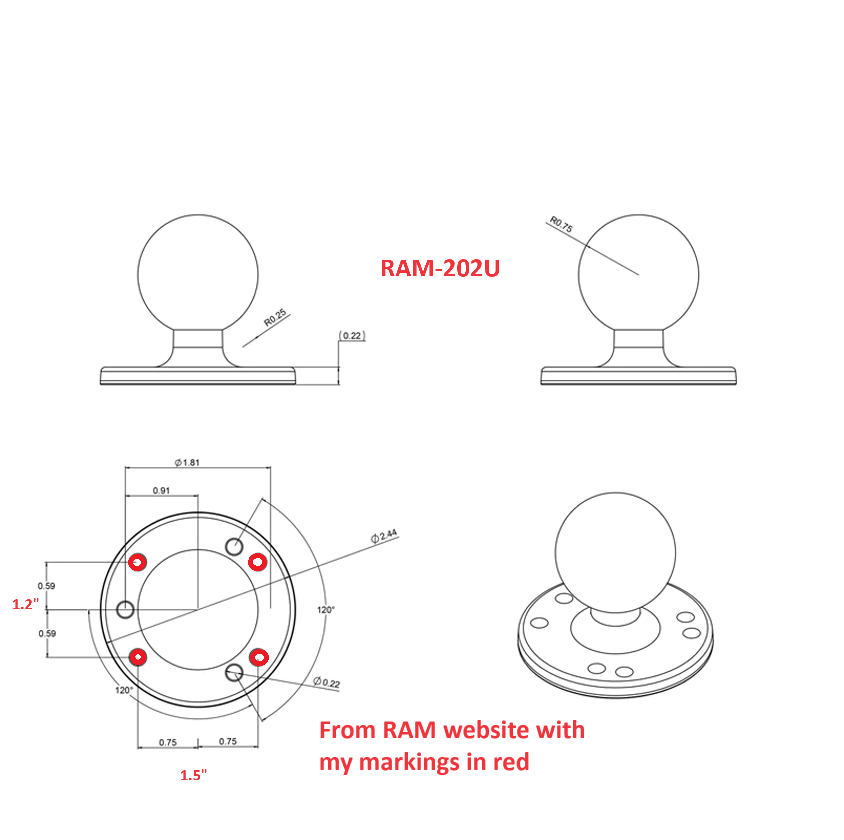

RAM mount is not included. C size with 1.5" ball at minimum is recommended for stability and holding power. The main pole mount piece is designed specifically to fit the hole pattern of the C size round base mount (RAM-202U). It's 4-Hole AMPS pattern: 1.181" x 1.496" or 30mm x 38mm. There are many knockoff versions on Amazon as well. Be sure to match the hole pattern. D size ball will provide more holding power. The base needs to be AMPS pattern. D size model is RAM-D-254U.

Wooster Paint pole is not included. It would add too much for shipping with a long pole. You can purchase the pole with the length that fits your boat at local hardware stores like Home Depot or online at Amazon. Both offer free shipping options.
Most fishing boat may only need the 2ft to 4ft version. Some boat may need the 4ft to 8ft version to reach the water level like a pontoon.
