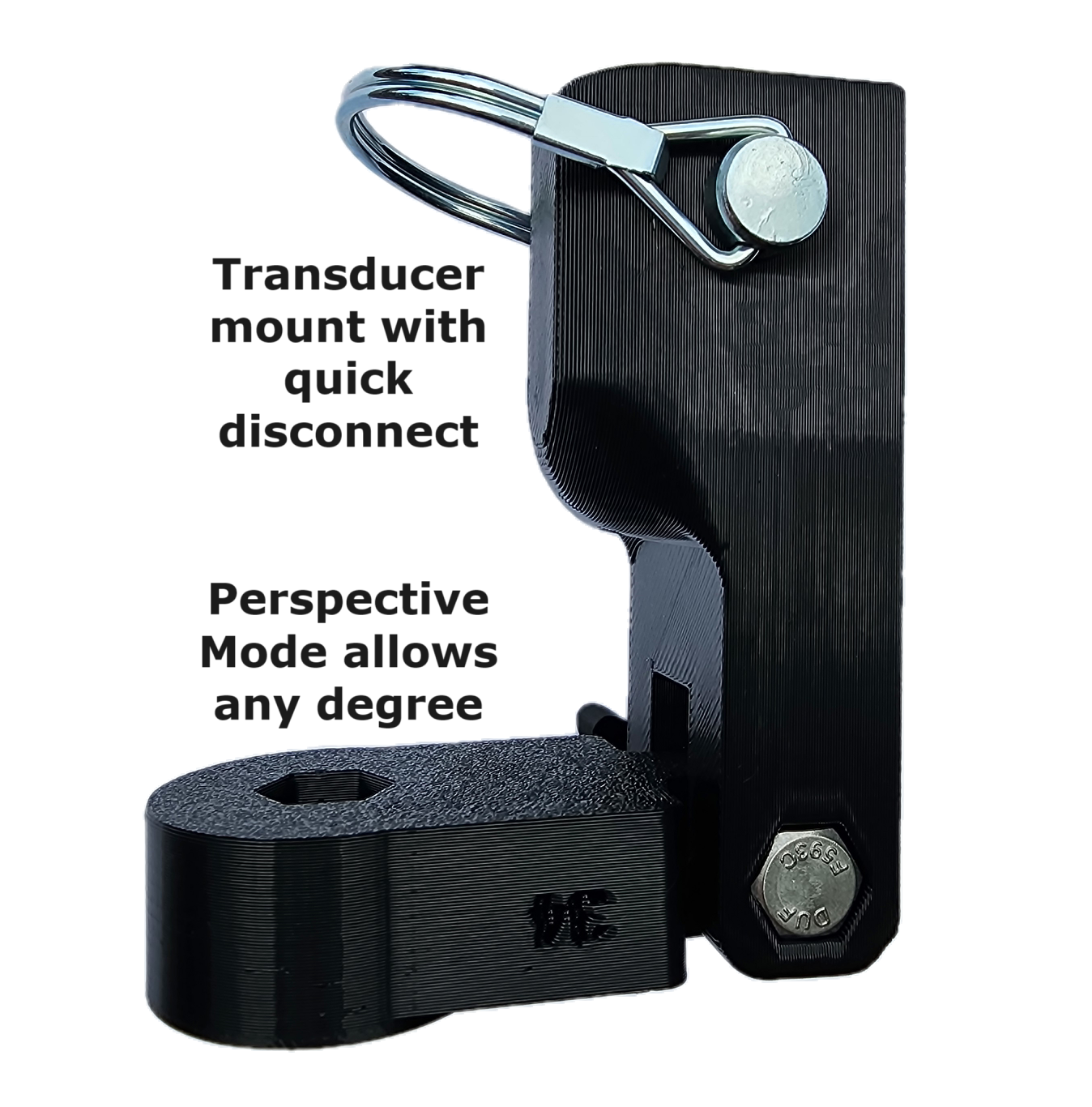

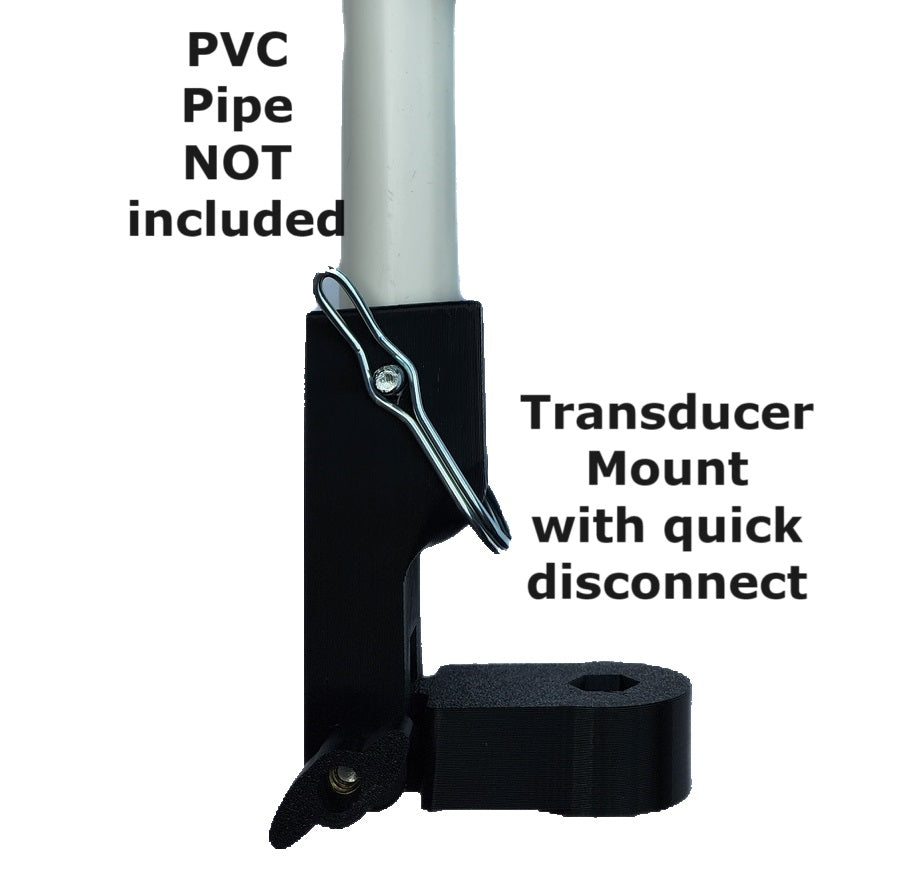

This is a two pieces set that allows you to mount your transducer to
the end of a 3/4" PVC pipe with a quick disconnect pin. It allows all views,
Forward, Down, and Perspective.
Package content:
- The piece that attaches to your transducer (based on your selection of your transducer model)*
- The piece that attach to the end of 3/4" PVC pipe*
- 1x hex bolt and 1x thumb screw to attach the above two pieces together
- 1x quick disconnect safety pin
*It's an one piece design for transom mount transducers so 1-3 above doesn't apply. You need to drill holes on the flat surface to match the mounting holes on your transom mount piece.

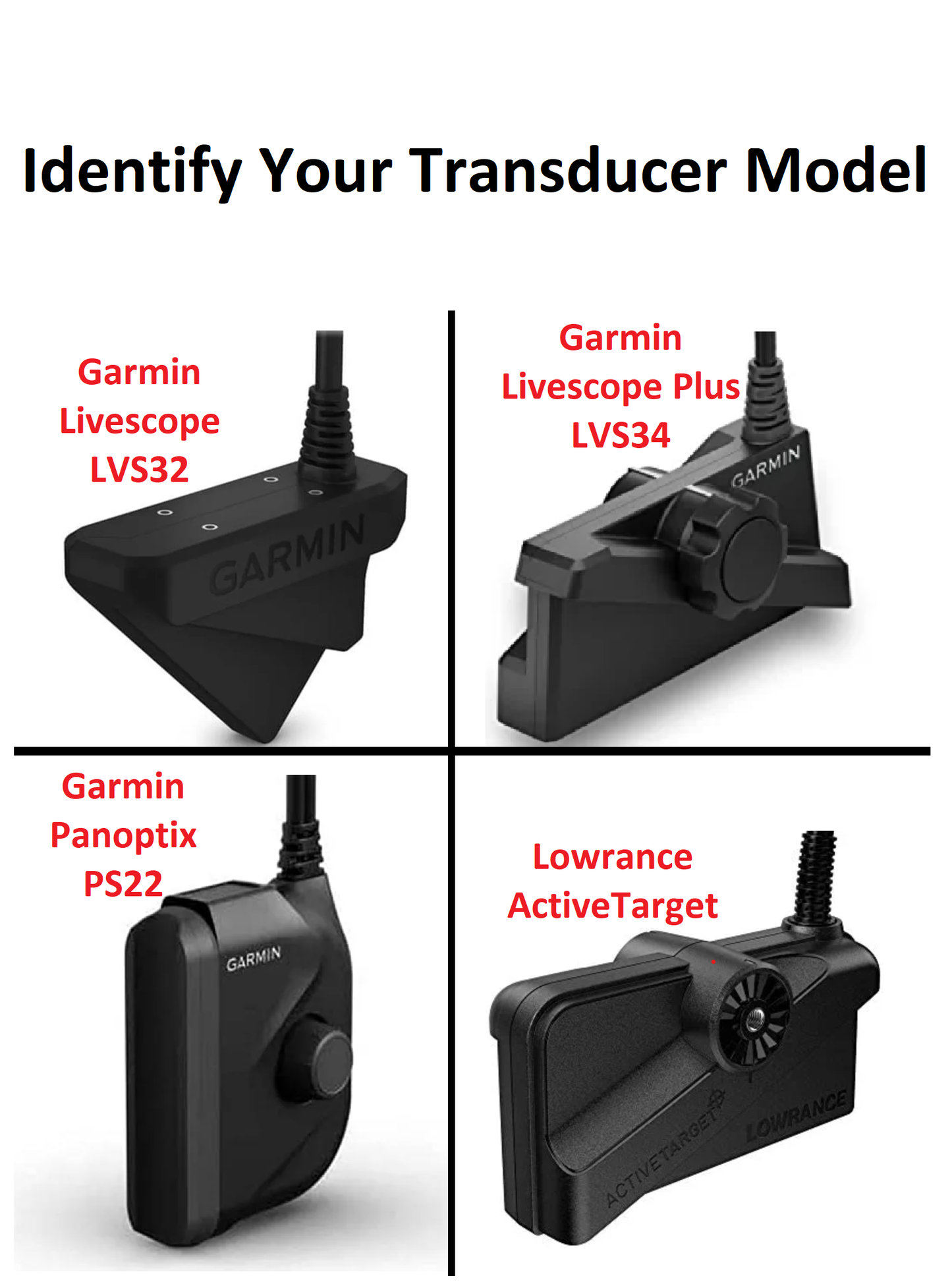

How to attach to your transducer:
-
For LVS32, use the factory included shoulder bolt from Garmin.
-
For LVS34, use your long threaded knob screw from Garmin.
-
For Active Target 1/2, either the factory included shoulder bolt or the small knob from Lowrance works.
-
For MEGA Live, the factory included screw doesn't work well so I included a knob screw for easier installation. Loosen the knob screw before rotating.
** I continue to update and improve my design based on customer feedbacks. Item you receive may not match the pictures shown here exactly. Pictures here don't get updates often. What you receive in the package is always my latest design at the time of shipment.
